LP-CC-30 - Eaton - Low Voltage Fuse

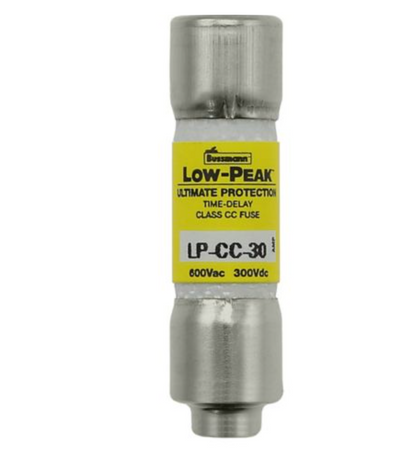

Eaton Bussmann LP-CC-30 | 30A 600V Class CC Fuse

The Eaton Bussmann series LP-CC-30 is a high-performance, current-limiting fuse designed for superior protection of small motor circuits, control panels, and branch circuits. Its time-delay, dual-element design makes it ideal for handling temporary inrush currents without nuisance tripping, while still providing fast-acting short-circuit protection.

Features:

  • Time-Delay, Dual-Element: The dual-element design provides a time delay for motor start-ups and other temporary overloads, ensuring circuit stability while protecting against sustained faults.

  • Current-Limiting Protection: Significantly limits the let-through energy during a fault, providing superior protection for downstream components from thermal and magnetic damage.

  • High Interrupting Rating: With an interrupting rating of 200kA at 600V AC, this fuse provides a high degree of safety for use in high-fault current applications.

  • Rejection Style Body: The Class CC rejection feature prevents the installation of lower-rated fuses, enhancing system safety and ensuring compliance.

  • DC Rated: Rated for use in DC systems, offering versatile protection across a range of applications.

Specifications:

  • Part Number: LP-CC-30

  • Manufacturer: Eaton (Bussmann Series)

  • Fuse Class: CC

  • Amperage Rating: 30A

  • Voltage Rating: 600V AC / 300V DC

  • Interrupting Rating (AIC):

  • 200kA at 600V AC

  • 20kA at 300V DC

  • Characteristics: Time-Delay, Dual-Element, Current-Limiting

  • Style: Rejection Style Fuse



FUSE- LP-CC-30

$18.98
