QB Electrical

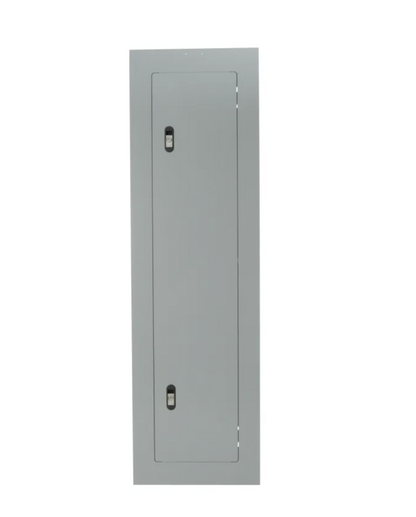

FAS-LATCH FRONT ASSY 20W 68H, SURFACE..Designation: 400A_2
Siemens Sentron Panelboard
400A Convertible MLO/MB | Type 1 Enclosure | Surface Mount
Key Specifications
| Category | Specification |
|---|---|
| Type | Type 1 Standard (Indoor) |
| Dimensions | 68"H × 20"W × 5.75"D |
| Mounting | Surface Mount |
| Configuration | Convertible Main Lug/Main Breaker |
| Bus Rating | 400A (S1 Series) |
| Material | Galvanized Steel |
| ETIM Class | EC002498 |
Construction Details
-
Enclosure: 14-gauge steel with gray powder coat
-
Finish: 60μm epoxy coating (RAL 7035)
-
Grounding: Integrated ground bar (4× 500kcmil capacity)
-
Knockouts: (12) 1/2" to 2" threaded/open
Electrical Ratings
-
Voltage: 120/240V 1Φ or 208Y/120V 3Φ
-
Short Circuit: 22kAIC @ 240V
-
Neutral: 100% rated (copper)
Features
✔ Convertible Design - Field-convertible between MLO and MB configurations
✔ Wire Management - 4" wire bending space
✔ Future Expansion - Accepts up to 42 circuits
MB-S68B-400A_2
- 1000 有存货
数量
QB Electrical
FAS-LATCH FRONT ASSY 20W 68H, SURFACE..Designation: 400A_2MB-S68B-400A_2
Siemens Sentron Panelboard
400A Convertible MLO/MB | Type 1 Enclosure | Surface Mount
Key Specifications
| Category | Specification |
|---|---|
| Type | Type 1 Standard (Indoor) |
| Dimensions | 68"H × 20"W × 5.75"D |
| Mounting | Surface Mount |
| Configuration | Convertible Main Lug/Main Breaker |
| Bus Rating | 400A (S1 Series) |
| Material | Galvanized Steel |
| ETIM Class | EC002498 |
Construction Details
-
Enclosure: 14-gauge steel with gray powder coat
-
Finish: 60μm epoxy coating (RAL 7035)
-
Grounding: Integrated ground bar (4× 500kcmil capacity)
-
Knockouts: (12) 1/2" to 2" threaded/open
Electrical Ratings
-
Voltage: 120/240V 1Φ or 208Y/120V 3Φ
-
Short Circuit: 22kAIC @ 240V
-
Neutral: 100% rated (copper)
Features
✔ Convertible Design - Field-convertible between MLO and MB configurations
✔ Wire Management - 4" wire bending space
✔ Future Expansion - Accepts up to 42 circuits
