ETN Circuit Breaker - Main Circuit Breaker Fed-Through - CCV Series

Eaton CCV Series Molded Case Circuit Breakers for ECC Unit Enclosures (150A-200A, 2-Pole, 120/240V, 10kAIC)

Heavy-Duty Feed-Thru Breakers for Commercial Power Distribution

The Eaton CCV Series offers 2-pole thermal-magnetic breakers in 150A (CCV2150) and 200A (CCV2200) configurations, designed for Type ECC Unit Enclosures. These UL-listed breakers feature feed-thru lugs and 10kA interrupting capacity, making them ideal for 120/240V split-phase systems requiring robust circuit protection.

Series Comparison

Model Amperage Poles Voltage Interrupt Rating Wire Range Dimensions (L×W×H)

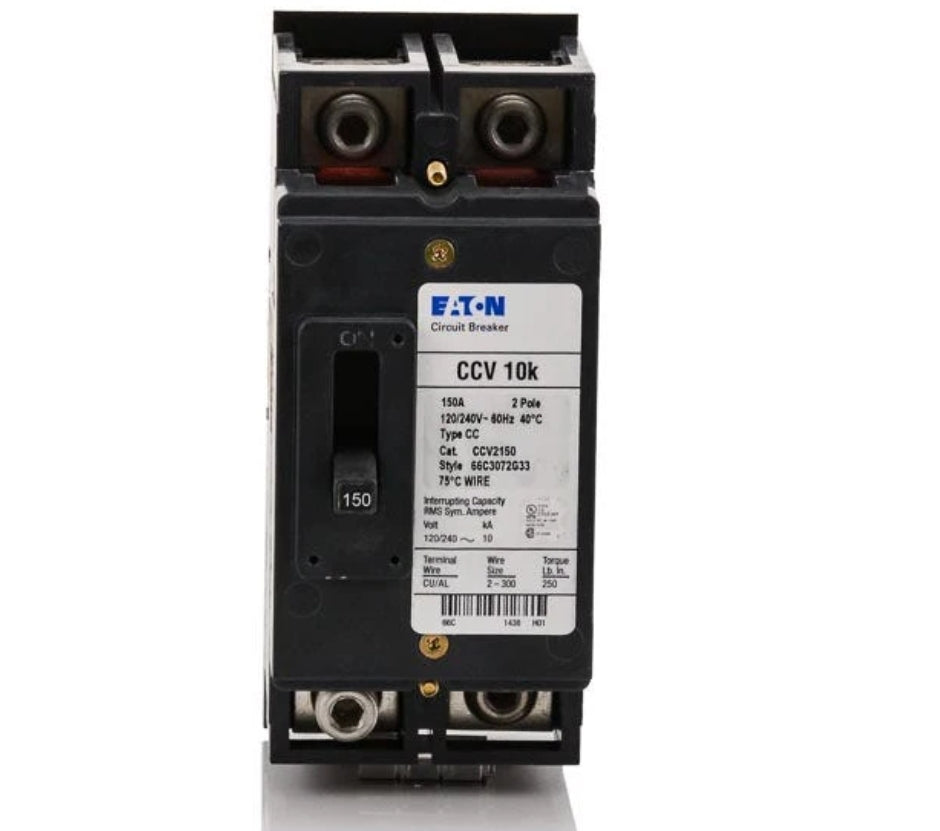

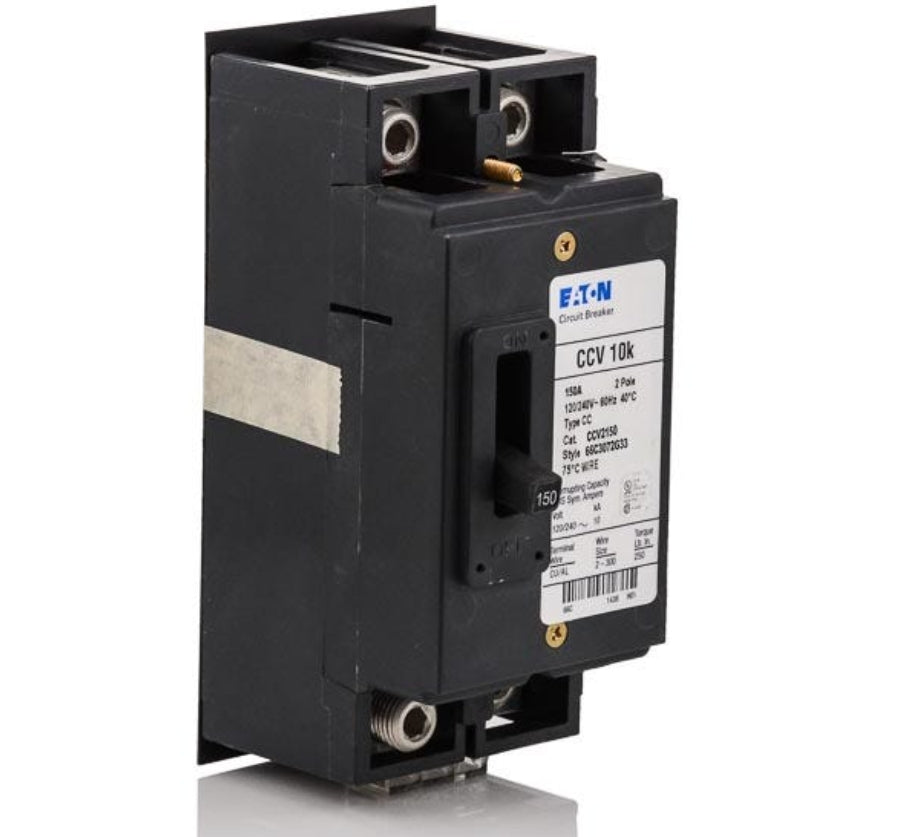

CCV2150 150A 2 120/240V 10kA @ 240V #2/0-300 kcmil (Cu/Al) 7.7" × 4.5" × 5.4"

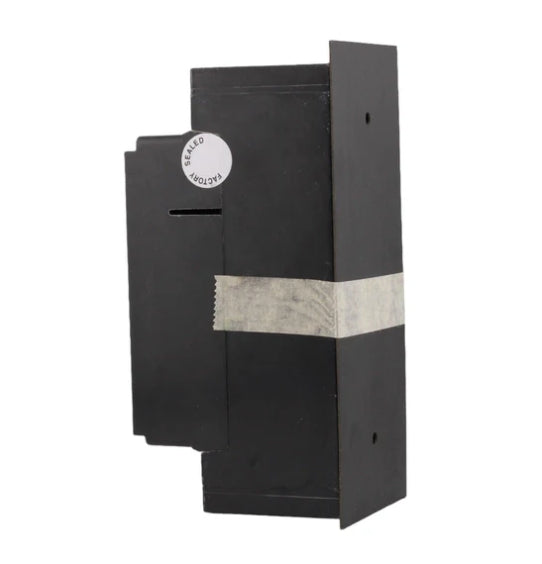

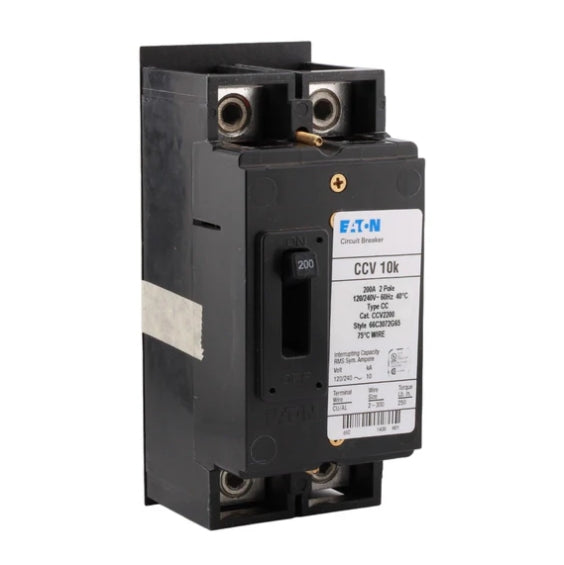

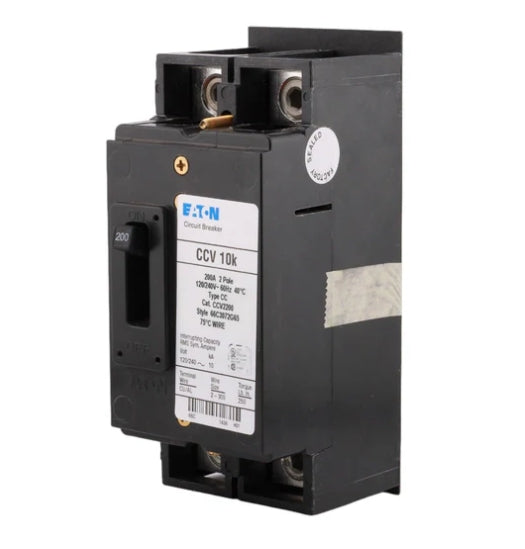

CCV2200 200A 2 120/240V 10kA @ 240V #2/0-300 kcmil (Cu/Al) 7.7" × 4.5" × 5.4"*

*200A model shares identical footprint

Key Features

✔ Feed-Thru Lugs – Line and load side connections for daisy-chaining circuits
✔ Thermal-Magnetic Trip – LI (Long-time + Instantaneous) protection
✔ High-Capacity Wiring – Accepts #2/0 to 300 kcmil copper/aluminum
✔ Enclosure-Ready – Designed for Type ECC Unit Enclosures
✔ Durable Construction – Molded case with corrosion-resistant terminals

Technical Specifications (Common to Both Models)

  • Series: CCV

  • Frame Type: CCV

  • Phase: 1 (Split-phase)

  • Connection: Feed-thru lug (Line/Load)

  • Certifications: UL 489

  • Protection: Thermal-magnetic

  • Trip Functions: Long-time + Instantaneous

BR-CCV2150

$304.75
