ATDR25 - Mersen / Ferraz Shawmut - Low Voltage Fuse

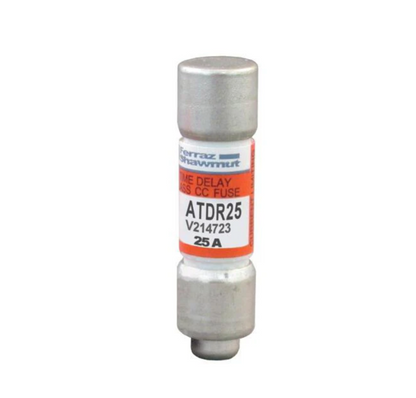

Mersen ATDR25 | 25A 600V Amp-Trap 2000® Class CC Fuse

The Mersen ATDR25 is a time-delay, Class CC fuse from the Amp-Trap 2000® family, engineered to provide advanced overcurrent protection for small motors, contactors, lighting, heating, and general loads. Its dual-element design ensures it can handle harmless inrush currents from inductive loads without nuisance tripping.

Features:

  • Advanced Overcurrent Protection: The time-delay, dual-element design provides superior protection for small motor circuits and other inductive loads, preventing unnecessary shutdowns.

  • Current-Limiting Performance: Significantly limits the let-through energy during a fault, offering excellent protection for downstream components from thermal and magnetic damage.

  • High Interrupting Rating: A 200kA AC interrupting rating provides a high degree of safety for use in systems with high potential fault currents.

  • Rejection Style Body: The Class CC rejection feature prevents the installation of incorrect fuse types, enhancing system safety and ensuring code compliance.

  • Visible Identification: Features a permanent, easy-to-read date and catalog number for lasting identification.

Specifications:

  • Part Number: ATDR25

  • Manufacturer: Mersen (Ferraz Shawmut)

  • Family: Amp-Trap 2000®

  • Fuse Class: CC

  • Amperage Rating: 25A

  • Voltage Rating: 600V AC

  • Interrupting Rating (AIC): 200kA at 600V AC

  • Characteristics: Time-Delay, Dual-Element, Current-Limiting

  • Style: Rejection Style Fuse

FUSE- ATDR25

$15.53
