Eaton Power Receptacle 50Amp 3Wire..AH1254BK

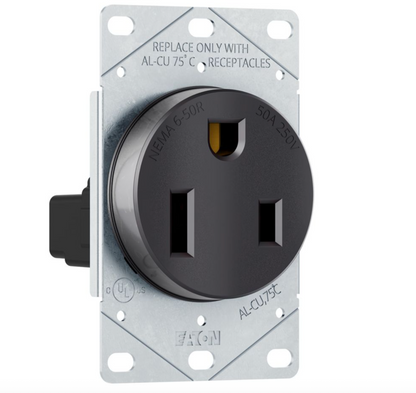

Eaton Arrow Hart® AH1254BK-BOX Industrial Receptacle

50A | 250V | NEMA 6-50R | 2P3W | Flush Mount

Product Identification

  • Series: Arrow Hart® Commercial/Industrial

  • Model: AH1254BK-BOX

  • UPC: 032664005749

  • Certifications: UL 498 | C22.2 (CSA)

  • Warranty: See warranty document (typically 1-year commercial)

Technical Specifications

Category Specification
Electrical Rating 50A, 250V AC
Configuration NEMA 6-50R (2P3W+G)
Wiring 3-Wire (2H-G)
Terminals Screw-Type (Back-Wired)
Wire Range #6-4 AWG Copper*
Torque Spec 25 lbf-in (2.8 N·m)
Mounting Flush, Canadian Strap

Physical Properties

  • Dimensions: 2.17"L × 3.69"H × 2.25"W

  • Weight: 0.39 lb

  • Material: Thermoplastic (UL94 Rated)

  • Color: Black

  • Box Compatibility: Standard 2-gang

Key Features

✔ Canadian-Compliant – Unique mounting strap design for CA installations
✔ Heavy-Duty Build – 50A continuous duty rating
✔ Secure Grounding – Isolated ground terminal
✔ High-Temp Rated – Withstands industrial environments

RAN-ETN-350 AH1254BK

$11.50

船运 结帐时计算。

  • 1000 有存货
数量

Eaton Power Receptacle 50Amp 3Wire..AH1254BK

$11.50
