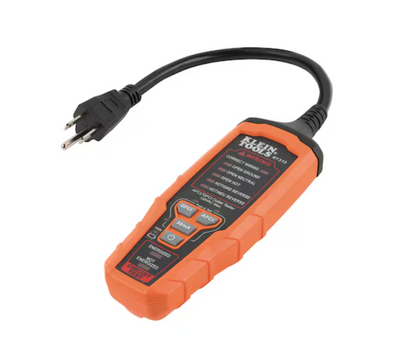

Klein Tools - RT310 AFCI /GFCI Outlet Tester

Technical Specifications

Attribute Specification
Dimensions 7.4" L × 2.3" W × 1.3" H (18.8 × 5.8 × 3.3 cm)
Weight 4.2 oz (119 g) with batteries
Voltage Range 120V AC (3-wire grounded)
Safety Rating CAT III 135V
Housing Material PC/ABS (UL94 V-0 flame rated)
Drop Protection 6.6' (2 m)
Battery Type 3× AAA alkaline (included)
Battery Life ≈500 test cycles

Testing Capabilities

✔ AFCI Verification

  • Simulates parallel arc faults (8A @ 120V)

  • Tests series arc detection

✔ GFCI Verification

  • Induces 6mA ground fault

  • Tests trip time (<25ms)

✔ Wiring Diagnostics

  • Detects 7 common faults:

    • Open ground/neutral/hot

    • Hot/neutral reverse

    • Hot/ground reverse

    • Dual-open neutral

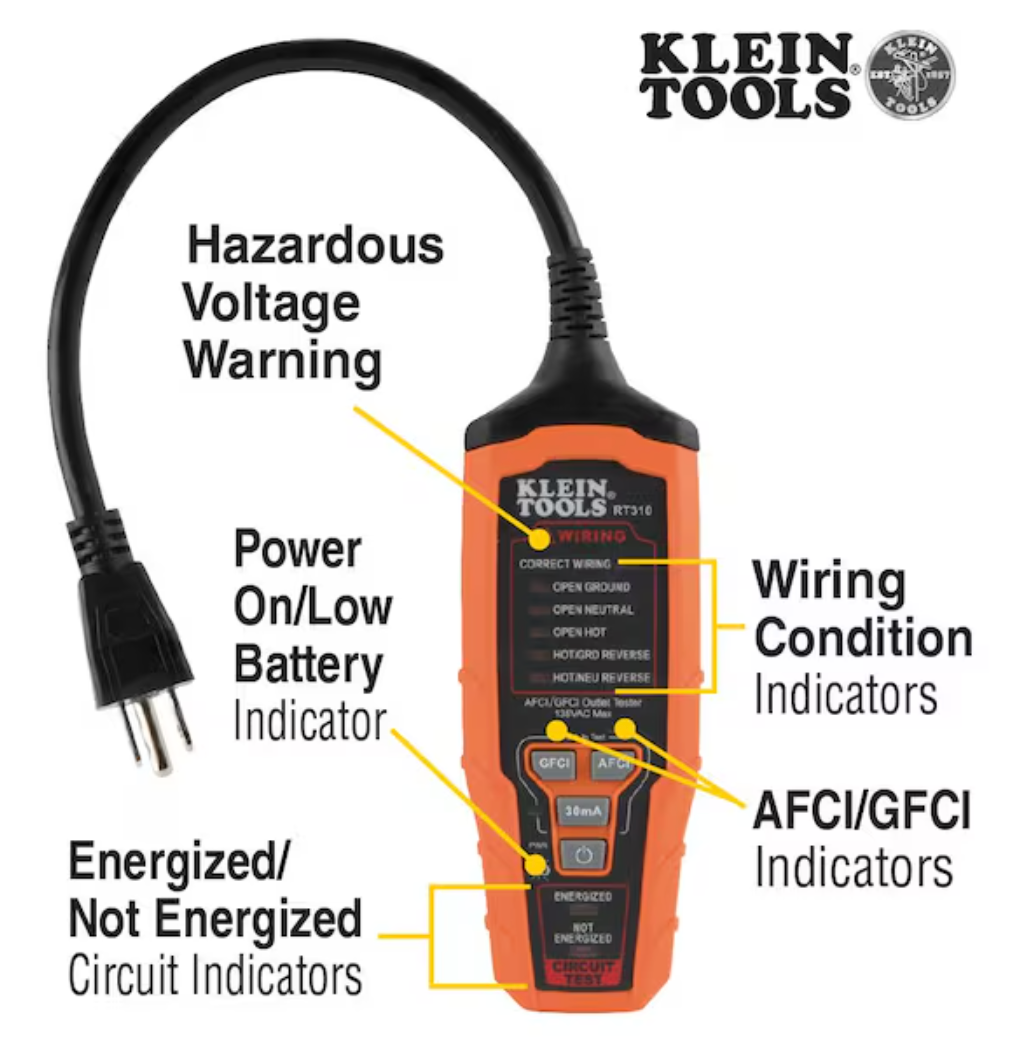

Display & Indicators

3-Color LED System:

  • Green: Correct wiring

  • Yellow: Wiring fault detected

  • Red: AFCI/GFCI failure

LCD Screen Shows:

  • Voltage (105-130V range)

  • Fault type (error codes)

  • GFCI trip time

Compliance & Standards

  • UL 1436 (Outlet Testers)

  • IEC 61010-1 (CAT III)

  • OSHA 29 CFR 1910.334

What's Included

  • RT310 tester unit

  • 3× AAA batteries (installed)

  • Quick-start guide

Professional Use Cases

  • Residential: AFCI breaker validation

  • Commercial: GFCI outlet certification

  • Industrial: NEC 210.12 compliance checks

Klein- RT310

$43.70
