QB Electrical

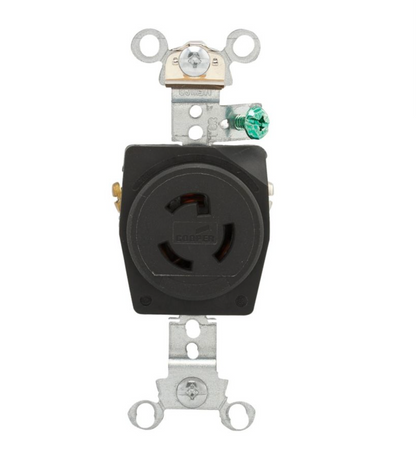

Locking Receptacle, 15A, 277V, 3P, 3W
Key Specifications
| Category | Details |
|---|---|
| NEMA Configuration | L7-15R (2P3W) |
| Amperage Rating | 15A |
| Voltage Rating | 277V AC |
| Phase | Single-Phase |
| Poles/Wires | 2P3W (Hot/Hot + Ground) |
| Contact Material | Brass (Tin-Plated) |
| Housing Material | Glass-Filled Nylon (UL94 V-0 Flame Rated) |
| Color | Black |
| Wiring Method | Back & Side Wiring (Dual Entry) |
| Wire Range | 14–8 AWG |
| Torque Rating | 14 lbf·in (1.58 N·m) |
| Grounding | Yes (3-Wire Grounded) |
| Operating Temperature | -40°C to 115°C (-40°F to 239°F) |
| Ingress Protection | IP20 (Indoor/Dry Locations) |
| Mounting | Flush Mount |
LD- L7-15R
- 1000 有存货
数量
QB Electrical
Locking Receptacle, 15A, 277V, 3P, 3WLD- L7-15R
Key Specifications
| Category | Details |
|---|---|
| NEMA Configuration | L7-15R (2P3W) |
| Amperage Rating | 15A |
| Voltage Rating | 277V AC |
| Phase | Single-Phase |
| Poles/Wires | 2P3W (Hot/Hot + Ground) |
| Contact Material | Brass (Tin-Plated) |
| Housing Material | Glass-Filled Nylon (UL94 V-0 Flame Rated) |
| Color | Black |
| Wiring Method | Back & Side Wiring (Dual Entry) |
| Wire Range | 14–8 AWG |
| Torque Rating | 14 lbf·in (1.58 N·m) |
| Grounding | Yes (3-Wire Grounded) |
| Operating Temperature | -40°C to 115°C (-40°F to 239°F) |
| Ingress Protection | IP20 (Indoor/Dry Locations) |
| Mounting | Flush Mount |
