EATON Wiring Hart-Lock Industrial Receptacles (NEMA Series)

Common Features:
✔ Hart-Lock Technology (Secure, vibration-resistant twist-lock connection)
✔ Safety Grip (Ergonomic design for easy handling)
✔ Industrial-Grade Nylon Housing (Corrosion-resistant, UL-listed)
✔ Screw Terminal Wiring (Standard 8 AWG–16 AWG wire range)
✔ Flush Mount (For panel/cable box installation)
✔ Standards Compliance: UL 498, CSA C22.2 No. 42, Federal Spec W-C-596

1. NEMA L14-20R (125/250V, 20A, Single-Phase)

• Voltage: 125/250V AC

• Current: 20A

• Phase: Single-Phase

• Poles/Wires: 3P4W (Hot/Hot/Neutral + Ground)

• Horsepower Rating: 2 HP

• Color: Black

• Compatible Plug: L14-20P

• Typical Use: Generators, RVs, portable power equipment.

2. NEMA L14-30R (125/250V, 30A, Single-Phase)

• Voltage: 125/250V AC

• Current: 30A

• Phase: Single-Phase

• Poles/Wires: 3P4W (Hot/Hot/Neutral + Ground)

• Horsepower Rating: 3 HP

• Color: Black

• Compatible Plug: L14-30P

• Typical Use: Heavy-duty generators, welding machines, stage power.

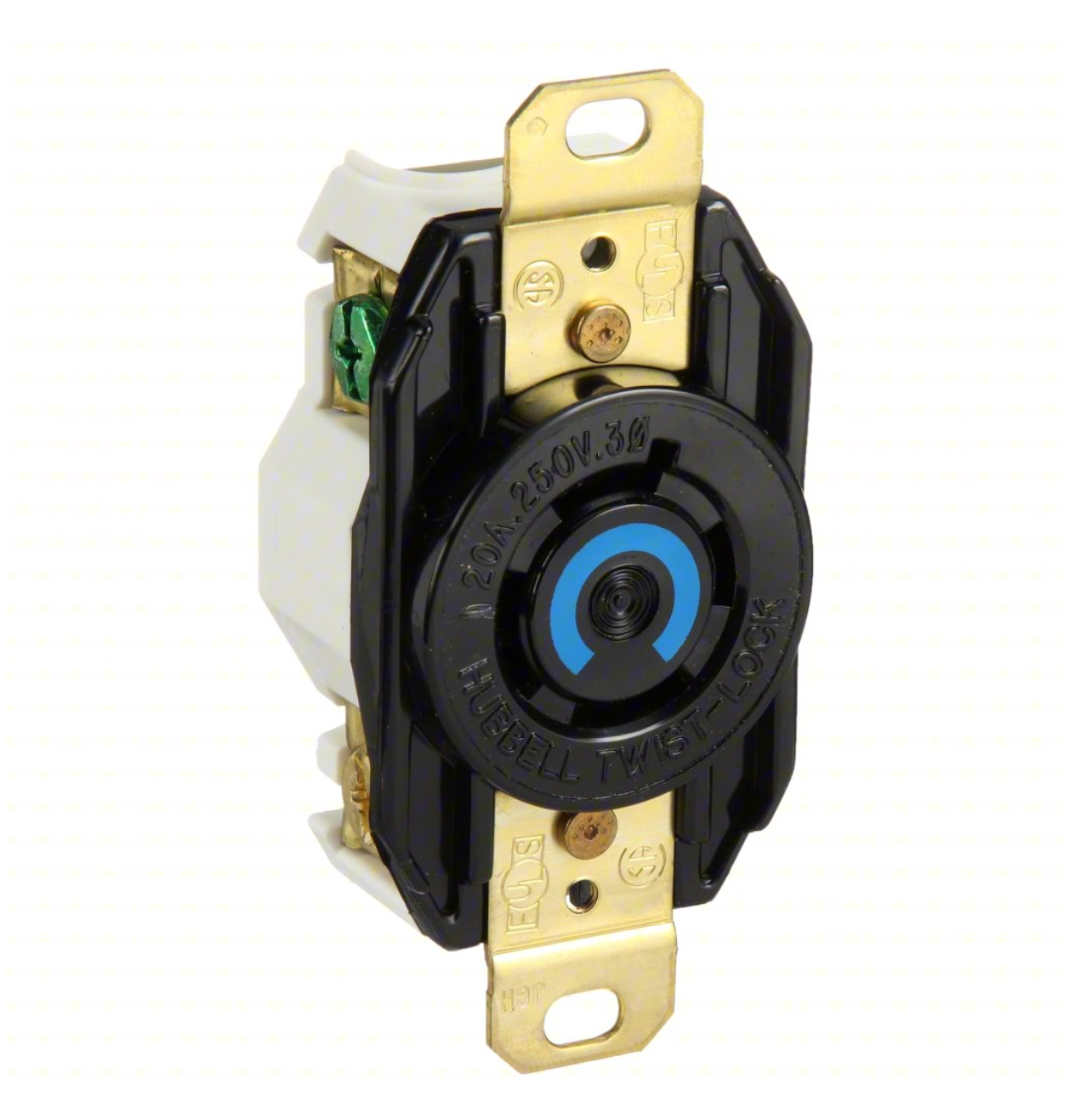

3. NEMA L15-20R (250V, 20A, 3-Phase)

• Voltage: 250V AC

• Current: 20A

• Phase: 3-Phase

• Poles/Wires: 3P4W (Hot/Hot/Hot + Ground)

• Horsepower Rating: 3 HP

• Color: Black

• Compatible Plug: L15-20P

• Typical Use: Industrial motors, CNC machines, data centers.

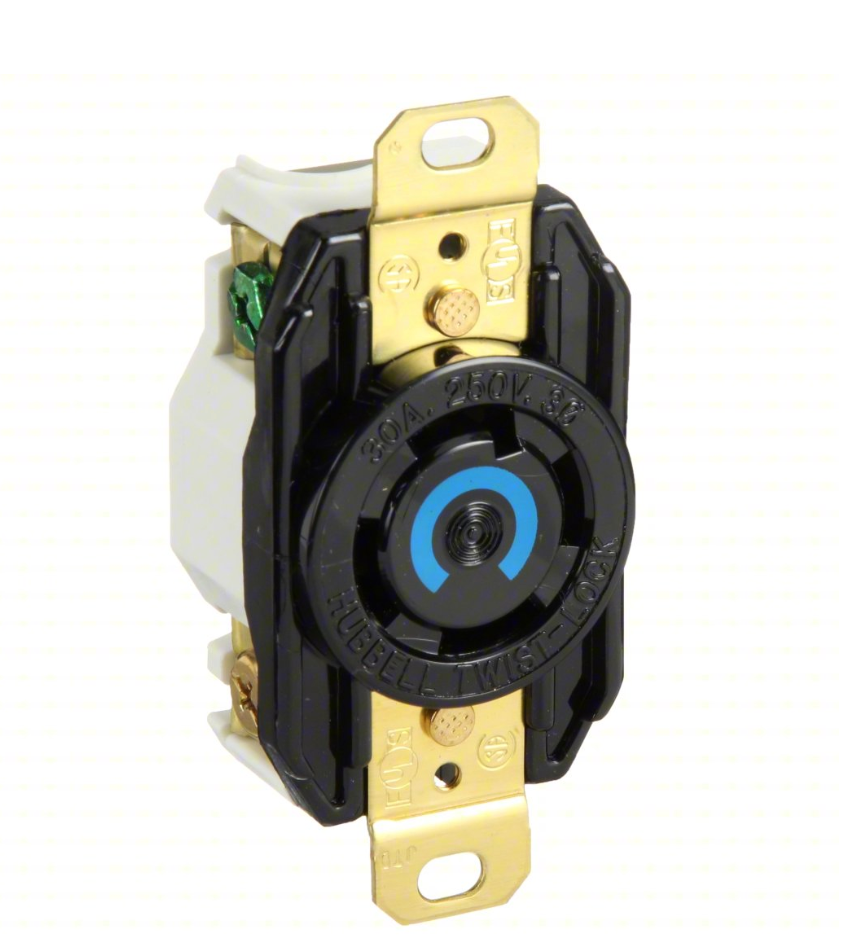

4. NEMA L15-30R (250V, 30A, 3-Phase)

• Voltage: 250V AC

• Current: 30A

• Phase: 3-Phase

• Poles/Wires: 3P4W (Hot/Hot/Hot + Ground)

• Horsepower Rating: 5 HP

• Color: Black

• Compatible Plug: L15-30P

• Typical Use: High-power machinery, industrial automation, HVAC systems.
