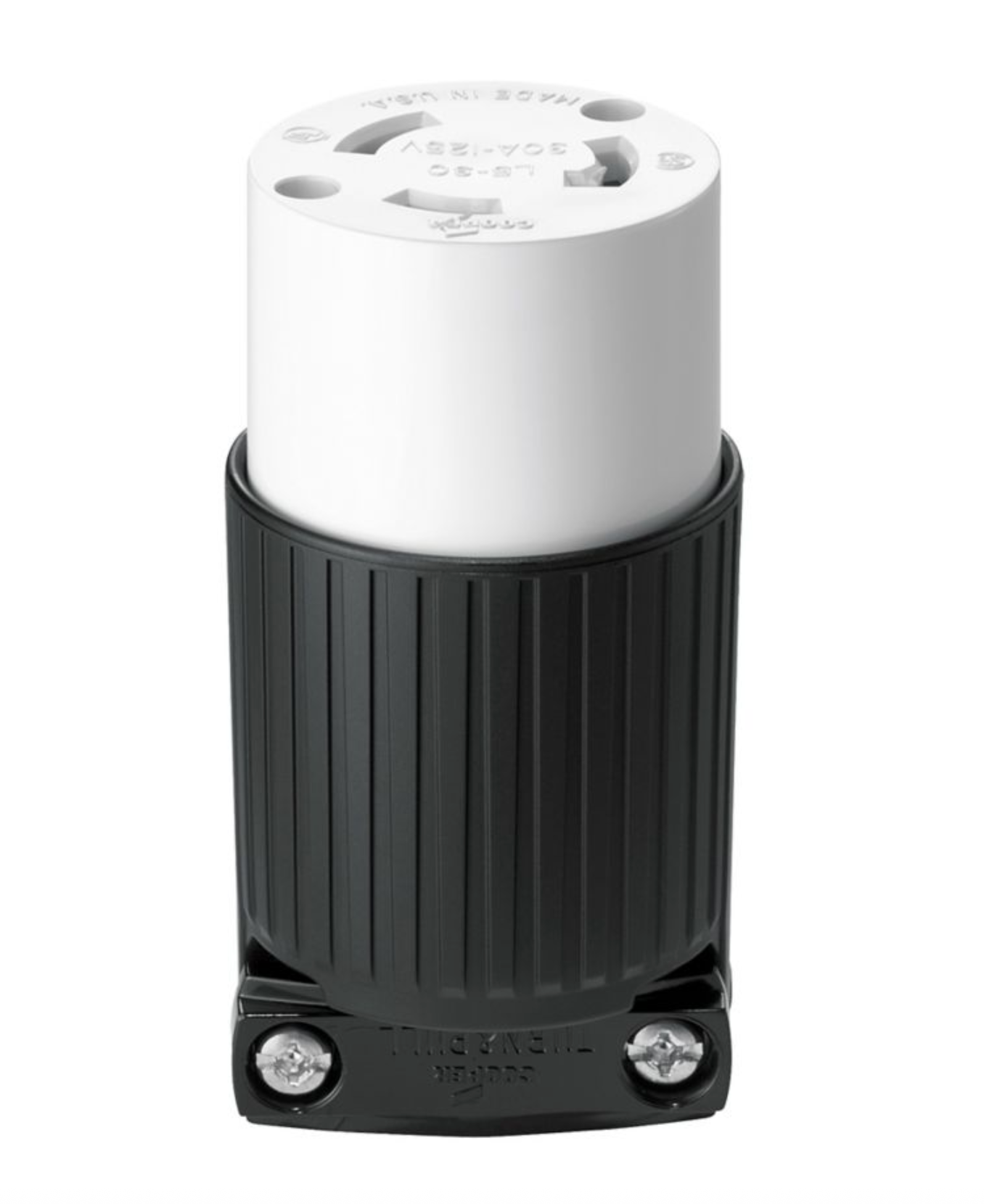

Eaton Locking Connector 125V, 2P, 3W

Industrial Twist-Lock Receptacles - NEMA L5 Series (15A/20A/30A)

Flush-Mount Power Connections for Commercial & Industrial Applications

Product Line Comparison

Model L5-15R (15A) L5-20R (20A) L5-30R (30A)
Rating 15A/125V 20A/125V 30A/125V
HP 1 HP 1.5 HP 2 HP
Wire Range 12-16 AWG 10-16 AWG 8-16 AWG
Torque 20 lb-in 22 lb-in 25 lb-in
Dimensions 1.8"W x 3.1"H 1.9"W x 3.3"H 2.1"W x 3.9"H
Shared Features Brass contacts • Nylon housing • -40°F to 167°F • UL/CSA certified

Key Benefits

✔ Secure Locking Mechanism - Twist-lock design prevents accidental disconnection
✔ Industrial-Grade Materials - Corrosion-resistant nylon housing
✔ Versatile Wiring - Back-wire terminals with dual-screw design
✔ Safety Compliance - Meets NEC Article 409 for industrial control panels

Application Guide

  • 15A (L5-15R):
    → Commercial kitchen mixers
    → Portable lighting towers
    → Small workshop tools

  • 20A (L5-20R):
    → Food service refrigeration
    → Medical equipment power
    → AV production gear

  • 30A (L5-30R):
    → Industrial compressors
    → RV shore power
    → Temporary event power

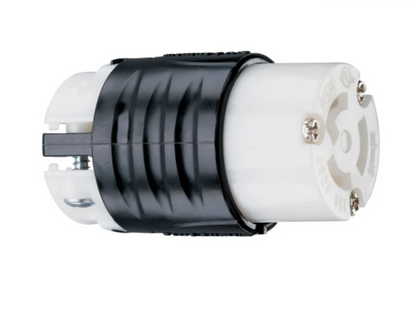

LD-ETN- L5-15C

$18.40

船运 结帐时计算。

  • 1000 有存货
Ampere Rating:
数量

Eaton Locking Connector 125V, 2P, 3W

$18.40
