KTK-R-12 - Bussmann - 12 Amp Fuse

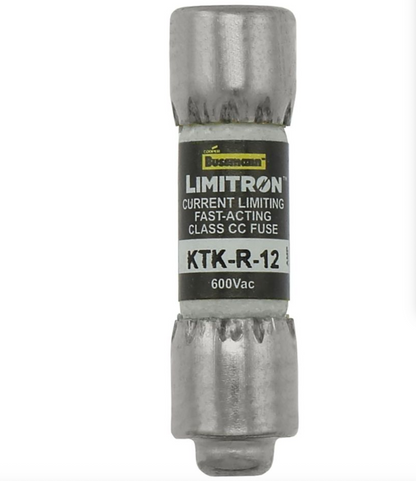

Eaton Bussmann KTK-R-12 | 12A 600V Class CC Fuse

The Eaton Bussmann series KTK-R-12 is a fast-acting, current-limiting fuse from the Limitron™ family, designed to provide superior protection for sensitive control circuits, lighting, and other non-inductive loads. It reacts quickly to both overload and short-circuit conditions to prevent damage to downstream components.

Features:

  • Fast-Acting Protection: Provides a rapid response to overcurrents, making it ideal for protecting sensitive electronic and control circuit components that are not subject to temporary inrush currents.

  • Current-Limiting Action: Significantly limits the peak let-through current during a fault, providing excellent protection for downstream equipment from thermal and magnetic damage.

  • High Interrupting Rating: A 200kA AC interrupting rating provides a high degree of safety for use in systems with high potential fault currents.

  • Rejection Style Body: The Class CC rejection feature ensures that only the correct fuse type is installed, enhancing system safety and preventing misapplication.

Specifications:

  • Part Number: KTK-R-12

  • Manufacturer: Eaton (Bussmann Series)

  • Fuse Class: CC

  • Amperage Rating: 12A

  • Voltage Rating: 600V AC

  • Interrupting Rating (AIC): 200kA at 600V AC

  • Characteristics: Fast-Acting, Current-Limiting

  • Style: Rejection Style Fuse



FUSE- KTK-R-12

$16.68

船运 结帐时计算。

  • 1000 有存货
数量

KTK-R-12 - Bussmann - 12 Amp Fuse

$16.68
