Square D - HOM120CAFIC Homeline 20 Amp Single-Pole CAFCI Circuit Breaker

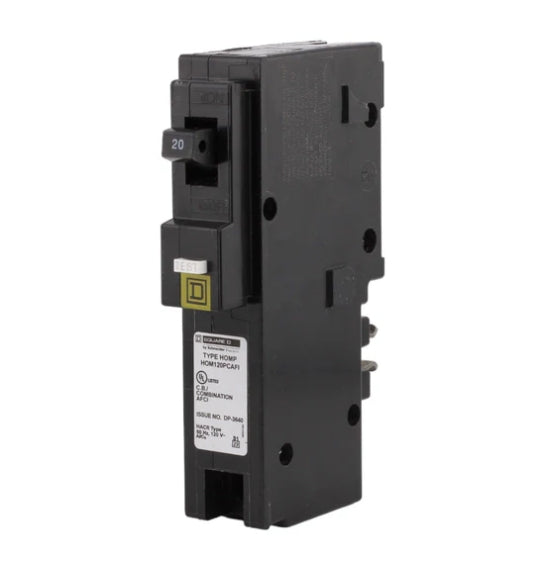

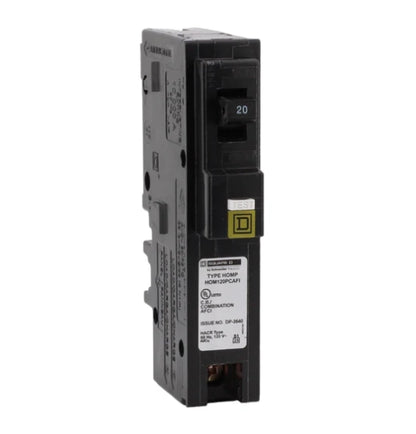

Square D HOM120PCAFI 20A Combination AFCI Breaker – HOMELINE Series, 120V, 10kA, Plug-On Neutral
Advanced Fire Prevention for Modern Homes
The Square D HOM120PCAFI is a 20A combination AFCI breaker that detects dangerous arc faults while providing standard overcurrent protection. Designed for Square D HOMELINE load centers, its plug-on neutral design simplifies installation while meeting NEC requirements for bedroom, living room, and other residential circuits.
Key Features
✔ Dual Protection - Combines arc-fault (CAFCI) and overcurrent protection
✔ Plug-On Neutral - Eliminates neutral pigtail for faster, cleaner installation
✔ Dual Wire Clamp - Accepts two conductors (#14-8 AWG Cu/Al)
✔ Test Button - Allows monthly safety verification
✔ Compact Design - Standard 1-inch width fits existing panels
Technical Specifications
| Category | Details |
|---|---|
| Manufacturer | Schneider Electric (Square D) |
| Series | HOMELINE |
| Amperage | 20A |
| Voltage | 120V |
| Interrupt Rating | 10kA |
| Protection Type | Combination AFCI (Parallel/Series Arcs) |
| Neutral Connection | Plug-On (No Pigtail) |
| Wire Capacity | 2× #14-8 AWG (Cu/Al) |
| Terminal Torque | 35.4 lb-in (4.0 N·m) |
| Dimensions | 1" W × 3.13" H × 2.98" D |
| Weight | 0.45 lb |
| Certifications | UL Listed |
BR-HOM120CAFIC
