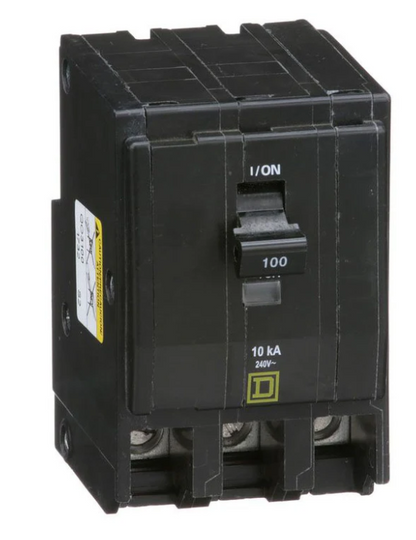

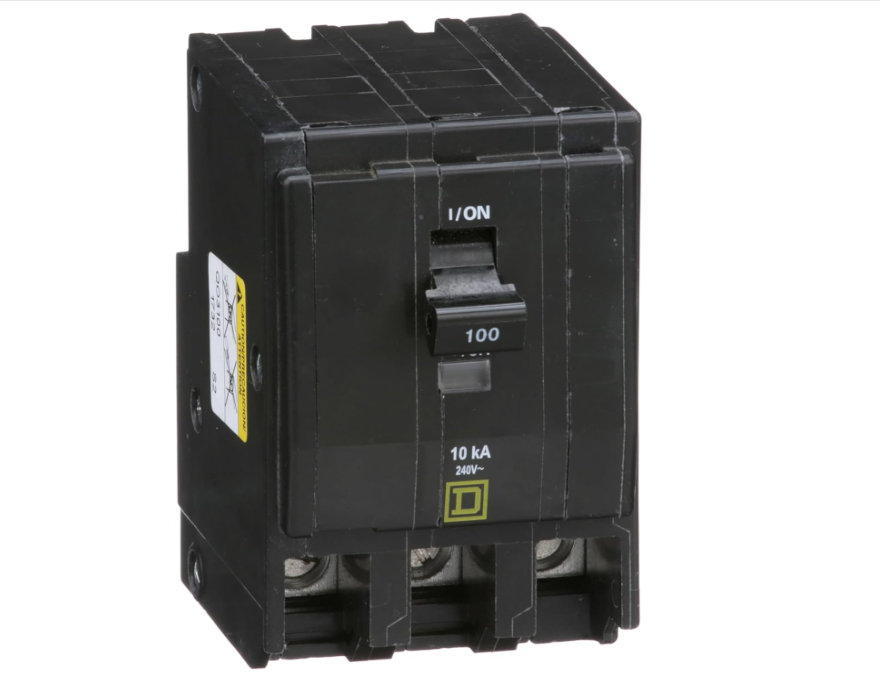

Key Features

✔ 100A Trip Rating - 10kA interrupting capacity @ 240VAC
✔ 3-Pole Design - For 208V/240V/480V 3-phase systems

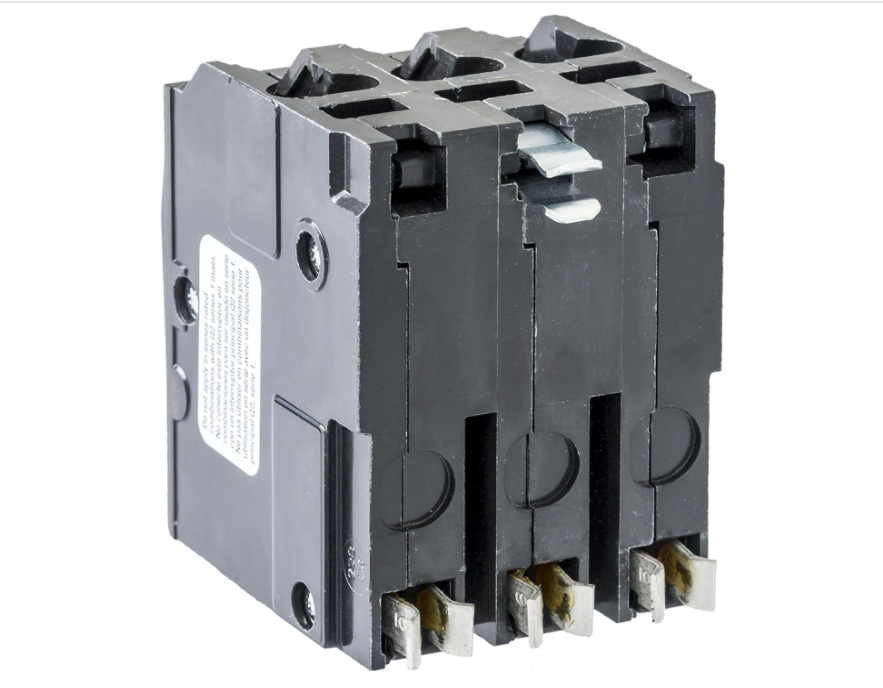

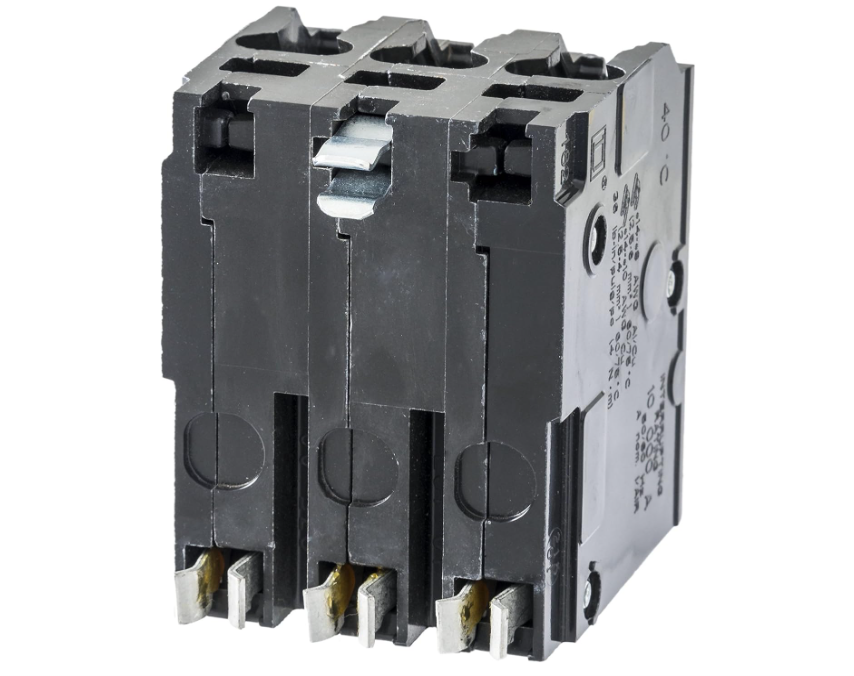

✔ Plug-In Mounting - Quick installation in compatible QO panels
✔ Thermal-Magnetic Trip - Dual protection against overloads/shorts
✔ Visi-Trip Indicator - Instant visual trip detection
✔ HACR Rated - Approved for HVAC equipment

Technical Specifications

• Voltage Rating: 240VAC (480V Y/277V capable)

• Interrupt Rating: 10,000 AIR

• Wire Range:

  • Copper: #4 AWG to 2/0 AWG

  • Aluminum: #4 AWG to 2/0 AWG

• Terminals: Lug-style (35 lb-in torque)

• Frame Size: 100A/QO

• Dimensions: 2.25" W × 3.5" H × 3.5" D

• Weight: 1.07 lbs
