Murray Combination GFCI 20Amp 1-Pole Breaker - MP120GF

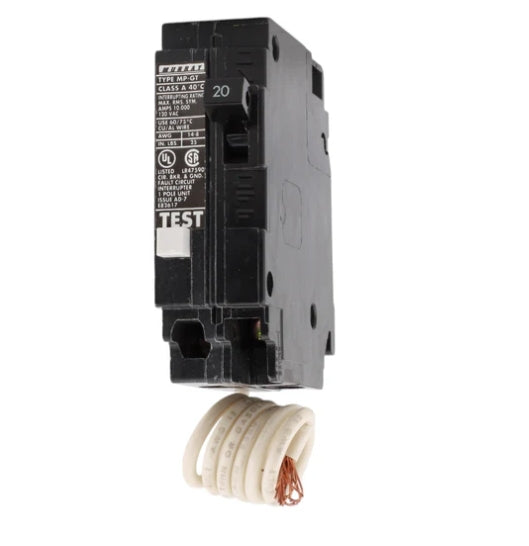

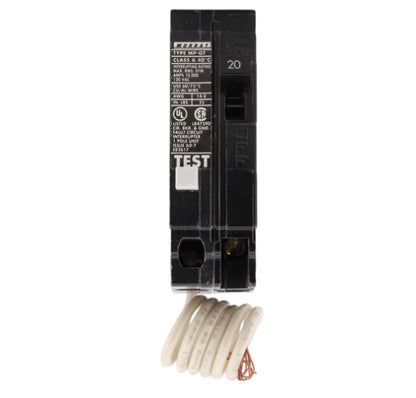

Murray MP120GF 20A Single-Pole GFCI Circuit Breaker – 120V, 10kAIC, Pigtail Neutral
Enhanced Shock Protection for Residential & Commercial Circuits
The Murray MP120GF is a 20A, single-pole GFCI breaker designed to prevent electrical shocks in 120V systems. Featuring 5mA trip sensitivity and 10kA interrupting capacity, this UL Listed/CSA Certified breaker combines thermal-magnetic protection with personnel ground fault protection for maximum safety.
Key Features
✔ 5mA GFCI Protection – Meets strict Class A safety standards
✔ SWD Rated – Suitable for fluorescent lighting switching
✔ HACR Certified – Approved for HVAC and refrigeration equipment
✔ Pigtail Neutral – Easy integration with existing panels
✔ Compact Design – Standard 1-inch width per pole
Technical Specifications
| Category | Details |
|---|---|
| Manufacturer | Murray (Siemens) |
| Type | GFCI (Class A) |
| Amperage | 20A |
| Voltage | 120V AC |
| Poles | 1 |
| Interrupt Rating | 10kAIC |
| Trip Sensitivity | 5mA (±1mA) |
| Connection | Pigtail Neutral |
| Wire Compatibility | #14-8 AWG (Copper/Aluminum) |
| Certifications | UL 943, CSA C22.2, HACR |
| Dimensions | 1" W × 3.5" H × 3.5" D (breaker only) |
| Package Size | 7.09" × 12.6" × 7.09" |
| Weight | 0.375 lb |
