GE Breaker 3-P 240V Plug-in THQL Series
GE THQL Series Three-Pole Circuit Breakers - Complete Line Overview
Product Family Description
GE's THQL series three-pole circuit breakers provide reliable protection for three-phase electrical systems in residential and light commercial applications. These plug-in breakers are designed for 240V three-phase circuits and are available in amperages from 20A to 100A, making them ideal for HVAC systems, commercial equipment, and three-phase motor applications.
Key Features & Benefits
✔ Wide Amperage Range (20A–100A) – Supports various three-phase load requirements
✔ 240V Three-Phase Protection – Suitable for commercial equipment and industrial applications
✔ Plug-In Connection – Quick and secure installation in compatible GE panels
✔ 10kA Interrupting Rating – Meets residential and light commercial needs
✔ Thermal-Magnetic Trip – Protects against both overloads and short circuits
✔ Compact Design – Standard 3-inch width (1" per pole)
✔ Certified Safety – UL Listed & CSA Approved
Available Models & Specifications
| Amperage | Catalog No. | Alternate No. | Dimensions (H×W×D) | Typical Applications |
|---|---|---|---|---|
| 20A | THQL3220 | THQL320 | 3" × 3" × 3" | Small three-phase motors |
| 30A | THQL3230 | THQL330 | 3" × 3" × 3" | Commercial HVAC units |

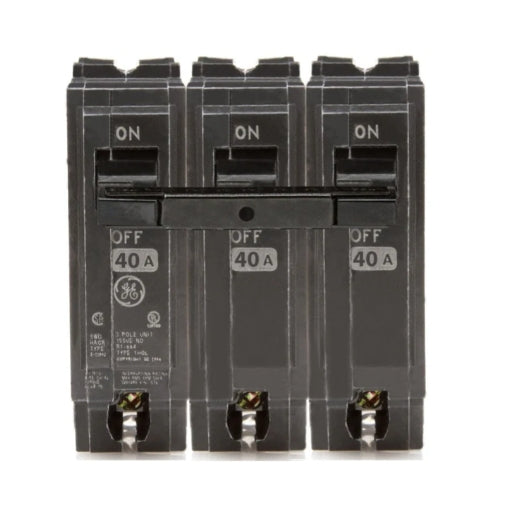

| 40A | THQL3240 | THQL340 | 3" × 3" × 3" | Industrial equipment |

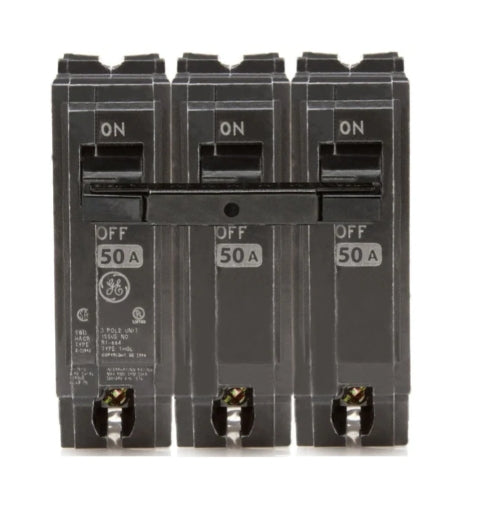

| 50A | THQL3250 | THQL350 | 3" × 3" × 3" | Large three-phase motors |

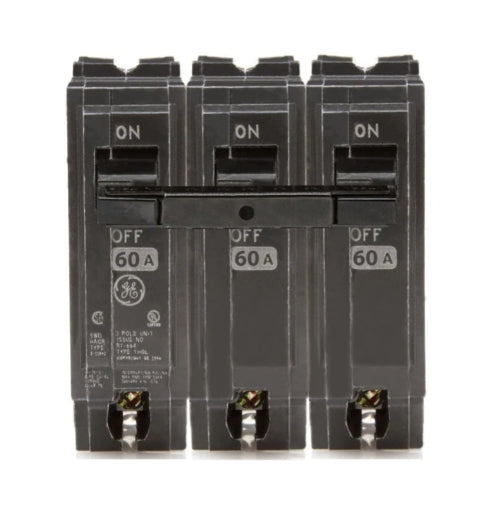

| 60A | THQL3260 | THQL360 | 3" × 3" × 3" | Commercial kitchen equipment |

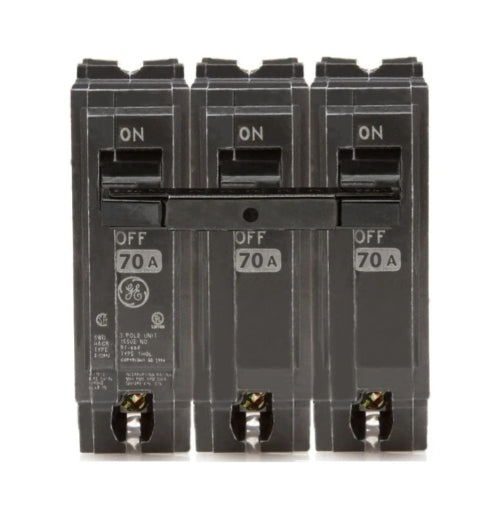

| 70A | THQL3270 | THQL370 | 3" × 3" × 3" | Manufacturing equipment |

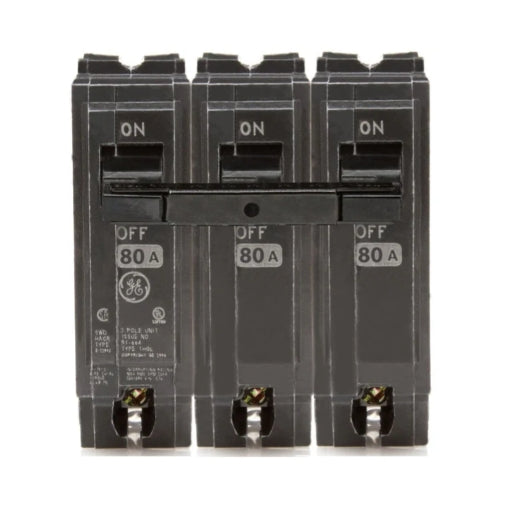

| 80A | THQL3280 | THQL380 | 3" × 3" × 3" | Heavy-duty three-phase loads |

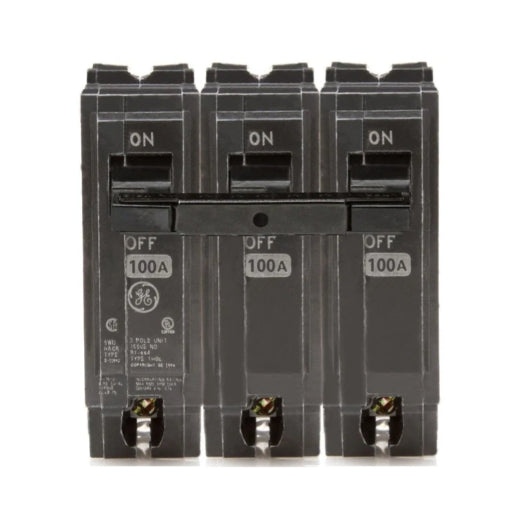

| 100A | THQL32100 | THQL3100 | 3" × 3" × 3" | Main panels, large commercial systems |
Common Specifications
-
Voltage: 240V
-
Phase: 3-Phase
-
Connection: Plug-In
-
Interrupting Rating: 10,000A @ 240V
-
Certifications: UL Listed, CSA Approved
-
Material: Copper contacts, durable thermoplastic housing
