QB Electrical

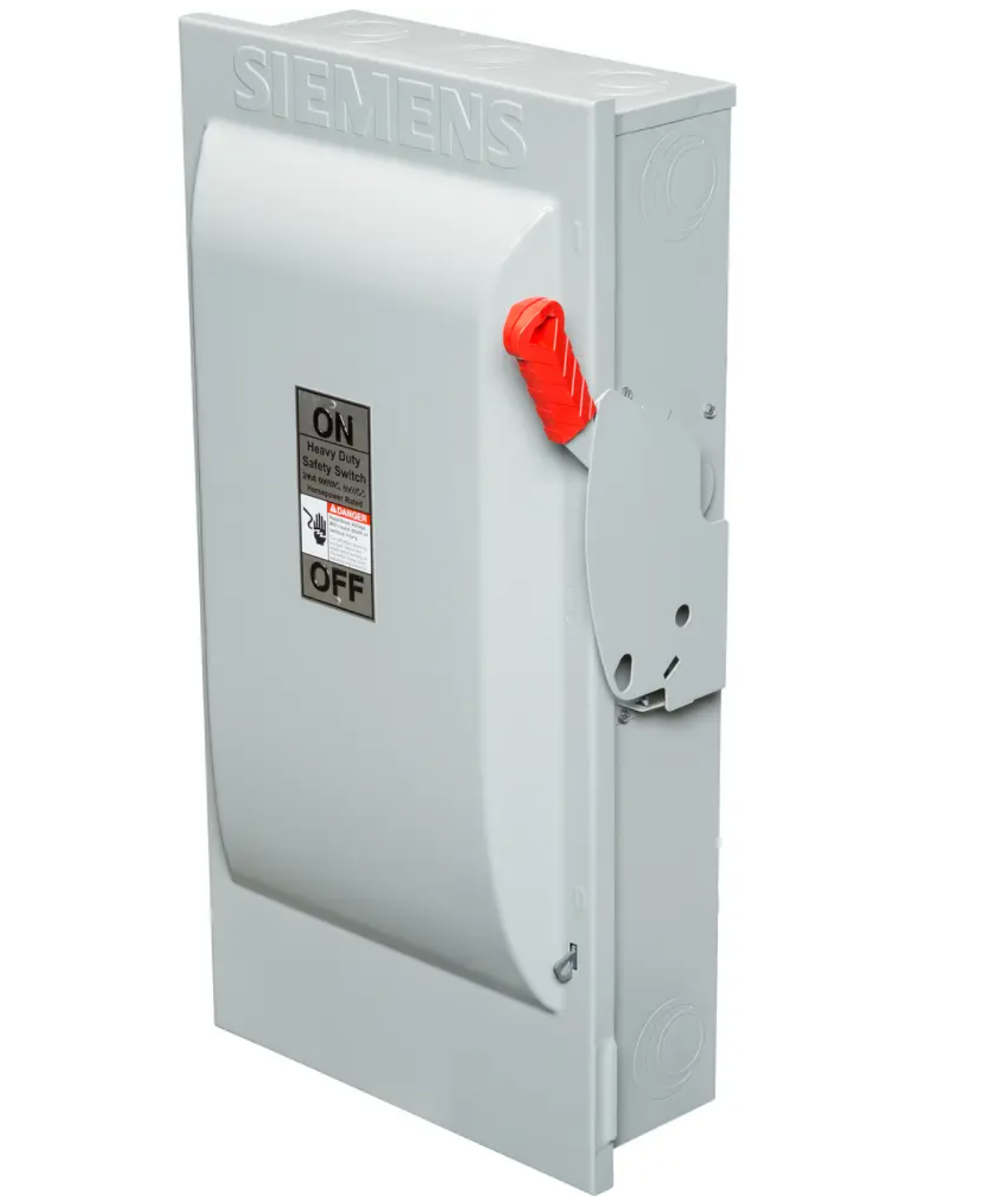

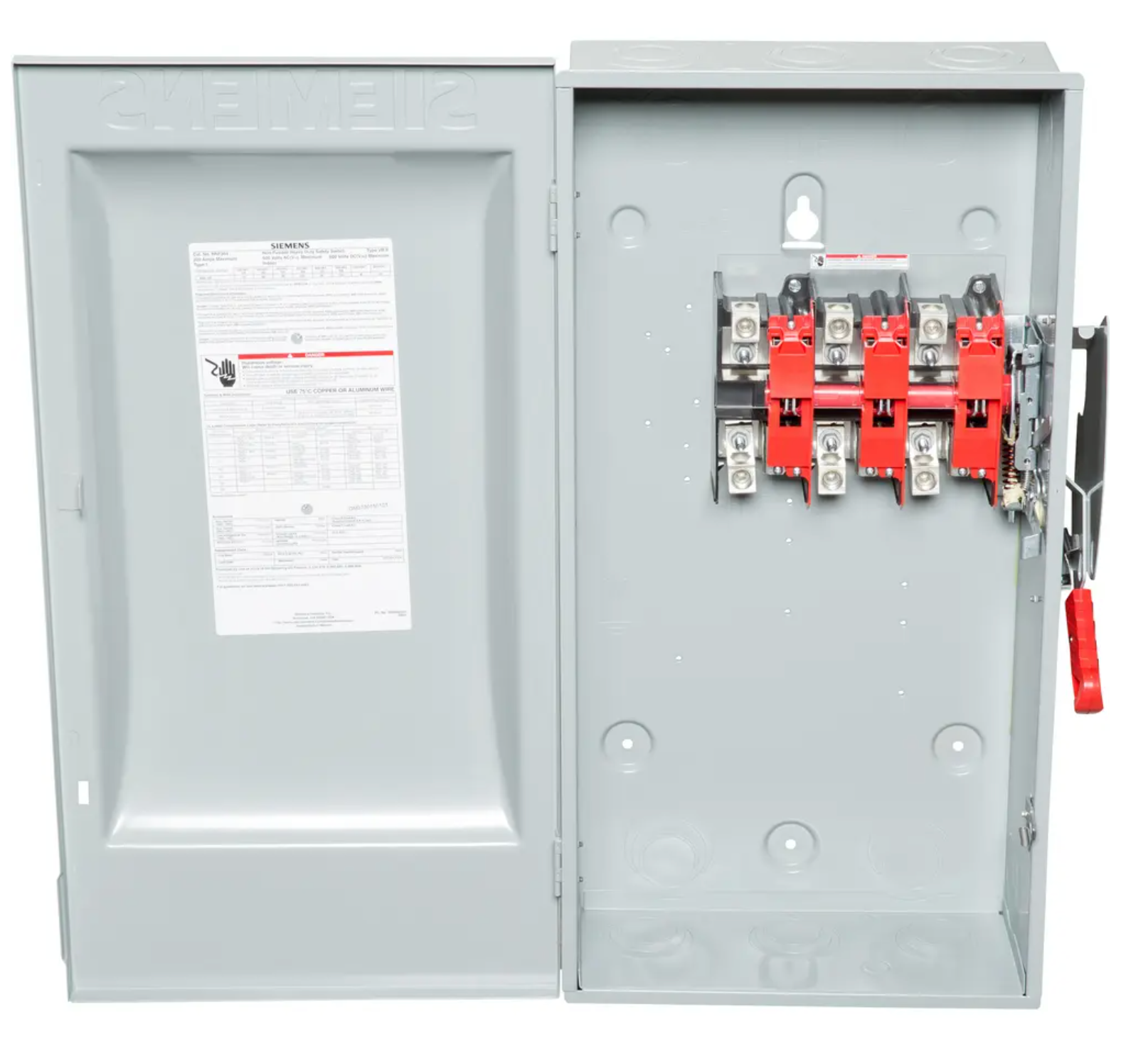

200 Amp. 3P Heavy Duty HF364/HF364N/HNF364
| Feature | HF364N (Fused + Neutral) | HNF364 (Non-Fused) | HF364 (Fused, 3-Wire) |
|---|---|---|---|
| Type | 3P + solid neutral fused | 3P non-fused | 3P fused (no neutral) |
| Current/Voltage | 200A, 600V AC | 200A, 600V AC | 200A, 600V AC |
| Fuse Support | Class J/R/T (3 fuses) | None | Class J/R/T (3 fuses) |
| Wiring | 3P + neutral (4-wire) | 3P (3-wire) | 3P (3-wire) |
| Short-Circuit Protection | 200kA (Class R/J) | Requires external OCPD | 200kA (Class R/J) |
| Enclosure | NEMA Type 1 (indoor) | NEMA Type 1 (indoor) | NEMA Type 1 (indoor) |
| Mechanism | Quick-make/break, visible blade | Quick-make/break, visible blade | Quick-make/break, visible blade |
| Padlocking | Yes | Yes | Yes |
| UL Service Entrance | Yes | No (disconnect only) | Yes |
| Typical Use | 3-phase systems needing neutral | Motor disconnects | 3-phase circuits without neutral |
Key Differences Explained
-
Neutral Presence
-
HF364N: Only model with a solid neutral (for 4-wire systems).
-
HNF364/HF364: 3-wire only (no neutral).
-
-
Fused vs. Non-Fused
-
HF364N & HF364: Include fuse protection (200kA fault rating with Class R/J).
-
HNF364: Disconnect-only (relies on upstream breakers/fuses).
-
-
Applications
-
HF364N: Service entrances, 3-phase + neutral loads (e.g., HVAC, industrial panels).
-
HF364: 3-phase circuits without neutral (e.g., motors, pumps).
-
HNF364: Simple isolation (maintenance, motor disconnects).
-
SS-ID-600V-200A- HF364
- 1000 有存货
数量
QB Electrical
200 Amp. 3P Heavy Duty HF364/HF364N/HNF364SS-ID-600V-200A- HF364
| Feature | HF364N (Fused + Neutral) | HNF364 (Non-Fused) | HF364 (Fused, 3-Wire) |
|---|---|---|---|
| Type | 3P + solid neutral fused | 3P non-fused | 3P fused (no neutral) |
| Current/Voltage | 200A, 600V AC | 200A, 600V AC | 200A, 600V AC |
| Fuse Support | Class J/R/T (3 fuses) | None | Class J/R/T (3 fuses) |
| Wiring | 3P + neutral (4-wire) | 3P (3-wire) | 3P (3-wire) |
| Short-Circuit Protection | 200kA (Class R/J) | Requires external OCPD | 200kA (Class R/J) |
| Enclosure | NEMA Type 1 (indoor) | NEMA Type 1 (indoor) | NEMA Type 1 (indoor) |
| Mechanism | Quick-make/break, visible blade | Quick-make/break, visible blade | Quick-make/break, visible blade |
| Padlocking | Yes | Yes | Yes |
| UL Service Entrance | Yes | No (disconnect only) | Yes |
| Typical Use | 3-phase systems needing neutral | Motor disconnects | 3-phase circuits without neutral |
Key Differences Explained
-
Neutral Presence
-
HF364N: Only model with a solid neutral (for 4-wire systems).
-
HNF364/HF364: 3-wire only (no neutral).
-
-
Fused vs. Non-Fused
-
HF364N & HF364: Include fuse protection (200kA fault rating with Class R/J).
-
HNF364: Disconnect-only (relies on upstream breakers/fuses).
-
-
Applications
-
HF364N: Service entrances, 3-phase + neutral loads (e.g., HVAC, industrial panels).
-
HF364: 3-phase circuits without neutral (e.g., motors, pumps).
-
HNF364: Simple isolation (maintenance, motor disconnects).
-
