QB Electrical
EMT Set Screw Connector EC

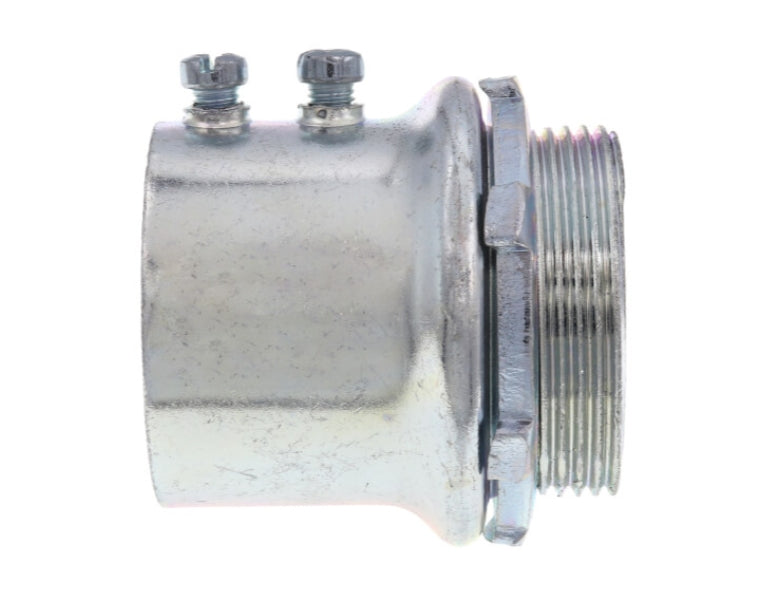

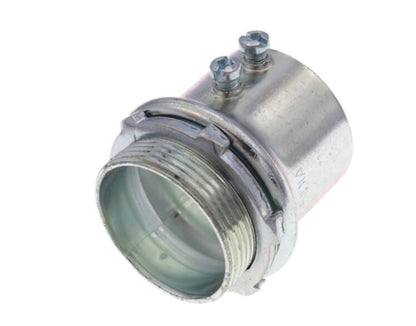

Steel Set Screw EMT Connectors (Zinc-Plated)
*Full Size Range: ½" to 4" | NPSM Thread | Concrete-Tight Seal*
Key Features
✔ Complete Size Selection - Available in 10 standard EMT sizes (½" to 4")
✔ Secure Conduit-to-Box Connection – Set screw retention for rigid EMT coupling
✔ Weather-Resistant Zinc Plating – Corrosion protection for indoor/outdoor use
✔ Concrete-Tight Seal – Achieves NEC-compliant seals when properly taped
✔ Includes – Zinc-plated rigid locknut with each connector
Available Sizes
| Trade Size | Actual OD | Common Applications |
|---|---|---|
| ½" | 0.706" | Residential lighting circuits |
| ¾" | 0.922" | Branch wiring |
| 1" | 1.163" | Feeder lines |
| 1¼" | 1.540" | Commercial installations |
| 1½" | 1.740" | |
| 2" | 2.197" | Industrial conduits |
| 2½" | 2.875" | |
| 3" | 3.500" | Heavy-duty raceways |
| 3½" | 4.000" | |
| 4" | 4.500" | Large capacity runs |
Technical Specifications
-
Material: Heavy-gauge zinc-plated steel
-
Thread: NPSM (National Pipe Straight Mechanical)
-
Standards:
-
UL 514B Listed
-
NEMA FB-1 Compliant
-
NEC Concrete-Tight when taped
-
Why Professionals Choose This Connector
-
No-Slip Grip: Serrated teeth bite into conduit
-
Vibration-Resistant: Locknut prevents loosening
-
Universal Use: Compatible with all standard EMT fittings
EC-1/2"
- 1000 有存货
数量
QB Electrical
EMT Set Screw Connector ECEC-1/2"
Steel Set Screw EMT Connectors (Zinc-Plated)
*Full Size Range: ½" to 4" | NPSM Thread | Concrete-Tight Seal*
Key Features
✔ Complete Size Selection - Available in 10 standard EMT sizes (½" to 4")
✔ Secure Conduit-to-Box Connection – Set screw retention for rigid EMT coupling
✔ Weather-Resistant Zinc Plating – Corrosion protection for indoor/outdoor use
✔ Concrete-Tight Seal – Achieves NEC-compliant seals when properly taped
✔ Includes – Zinc-plated rigid locknut with each connector
Available Sizes
| Trade Size | Actual OD | Common Applications |
|---|---|---|
| ½" | 0.706" | Residential lighting circuits |
| ¾" | 0.922" | Branch wiring |
| 1" | 1.163" | Feeder lines |
| 1¼" | 1.540" | Commercial installations |
| 1½" | 1.740" | |
| 2" | 2.197" | Industrial conduits |
| 2½" | 2.875" | |
| 3" | 3.500" | Heavy-duty raceways |
| 3½" | 4.000" | |
| 4" | 4.500" | Large capacity runs |
Technical Specifications
-
Material: Heavy-gauge zinc-plated steel
-
Thread: NPSM (National Pipe Straight Mechanical)
-
Standards:
-
UL 514B Listed
-
NEMA FB-1 Compliant
-
NEC Concrete-Tight when taped
-
Why Professionals Choose This Connector
-
No-Slip Grip: Serrated teeth bite into conduit
-
Vibration-Resistant: Locknut prevents loosening
-
Universal Use: Compatible with all standard EMT fittings
