QB Electrical

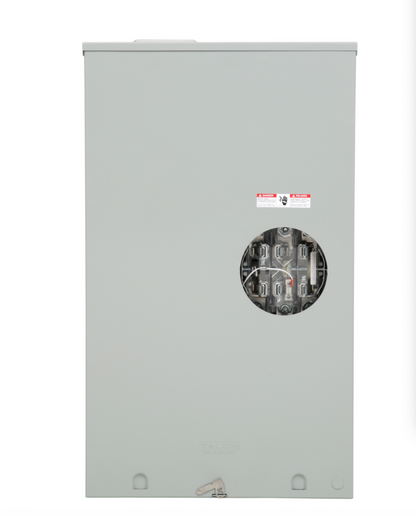

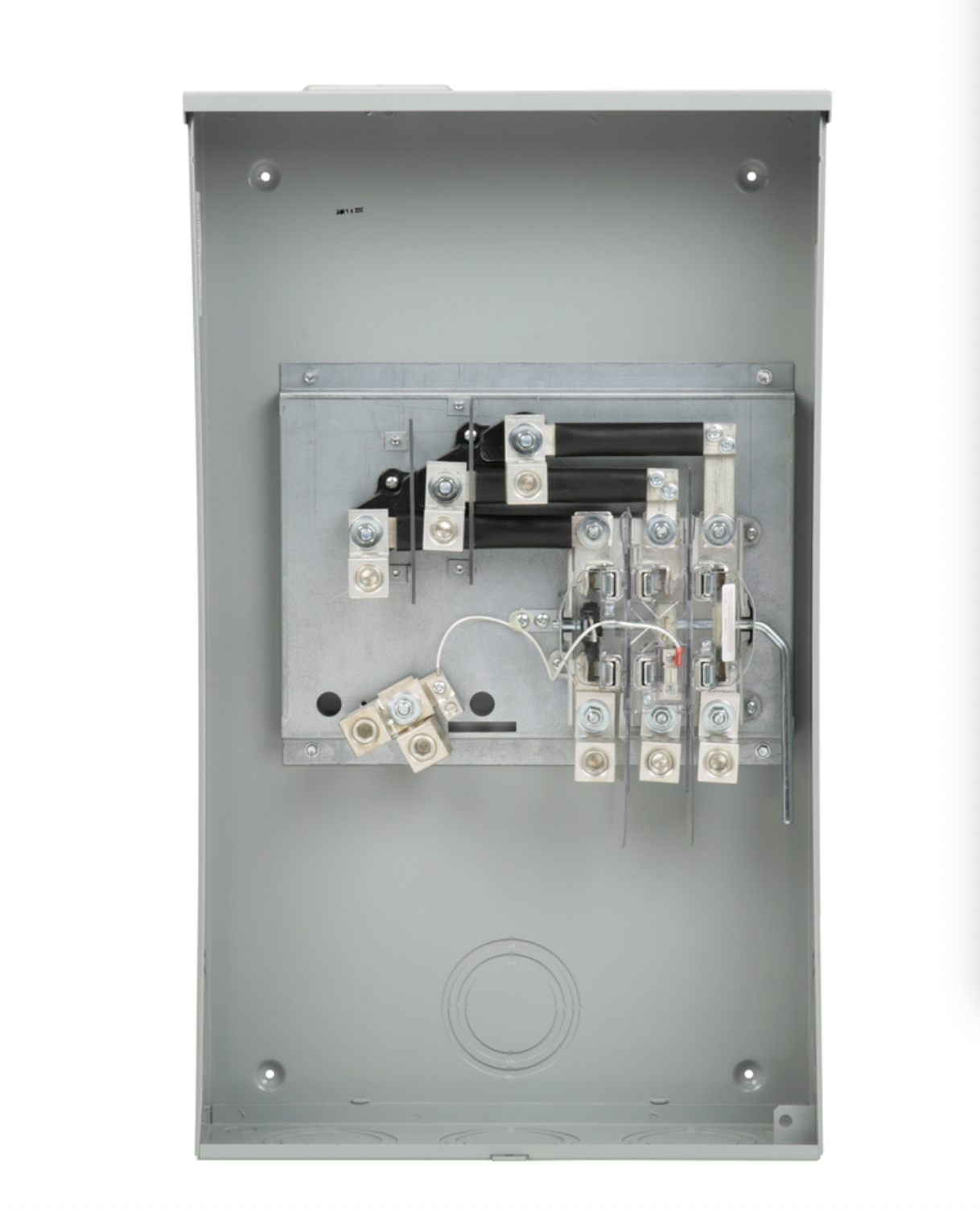

Talon 320A 7 Jaw Ringless 1 Position Lever Bypass Meter Socket OH/UG

Heavy-Duty Commercial Electrical Enclosure

320A | 600V | 3-Phase | Surface Mount | Steel Construction

Key Specifications

Category Specification
Electrical Rating 320A, 600V AC 3Φ
Enclosure Type NEMA 3R Steel (HQSW Series)
Dimensions 7"W × 21"H × 37"D
Mounting Surface (9-hole flange)
Conduit Entry OH/UG (9 knockouts)
Temp Rating -30°C to +40°C ambient

Construction Details

✔ Material: 12-gauge galvanized steel
✔ Finish: Powder-coated gray (70μm)
✔ Features:

  • Reinforced structural ribs

  • Removable backplate

  • Dual-grounding points

Installation Features

  • Knockout Pattern: (9) ½" to 2" threaded/openings

  • Cable Access: Top/bottom/side entry options

  • Hardware: Stainless steel fasteners included

Compliance & Standards

  • Safety: UL 508A • CSA C22.2 No. 94

  • Environmental: NEMA 3R (rainproof)

  • Seismic: IBC 2018 compliant

Typical Applications

  • Industrial control panels

  • MCC feed connections

  • Data center power distribution

  • Commercial service entrances

MSV-320A-48707-82GP
