QB Electrical

Siemen's New York Delta Metering..MURRAY NYC MTR PHASE BLOCK 3 T.O LUGS

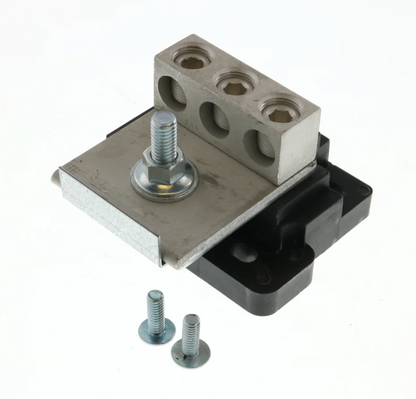

Siemens NY Delta Metering Block

Multi-Family Metering Solution | UL Listed | 1Φ/3Φ 240VAC

Key Specifications

Category Specification
Type PH Block (3-Count)
Application NYC-compliant multi-family metering
Voltage Rating 240V AC
Phase 1-Phase or 3-Phase configurable
Dimensions 3.7"W × 7.8"H × 10.8"D
Insulation Class 1 (600V)
Standards UL Listed (NYC Special)

Construction Details

✔ Enclosure: NEMA 1 steel with baked enamel finish
✔ Terminals: Tin-plated copper alloy
✔ Safety Features:

  • Isolated neutral bar

  • Transparent protective covers

  • Torque-limited screws (35 lb-in)

Installation Requirements

  • Mounting: Vertical or horizontal panel mounting

  • Conductor Size: Accepts #14-500kcmil

  • CT Rating: Compatible with 200:5 to 4000:5 CTs

NYC-Specific Features

  • Pre-approved for NYCHA and Con Edison projects

  • Tamper-evident sealing provisions

  • Dual-voltage monitoring (120/240V)

MSD-UPB3

$57.50

Envío calculado a la salida.

  • 1000 En stock
Cantidad

Siemen's New York Delta Metering..MURRAY NYC MTR PHASE BLOCK 3 T.O LUGS

$57.50
