FNQ-R-1 - Bussmann - 1.3 Amp Fuse

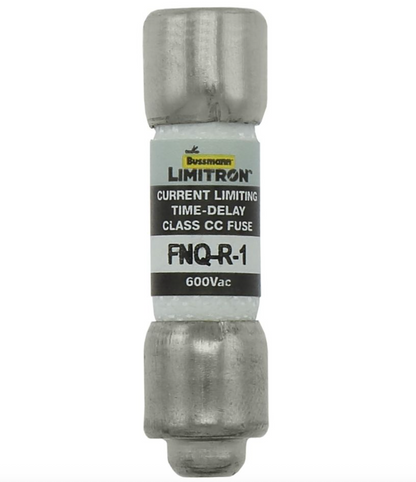

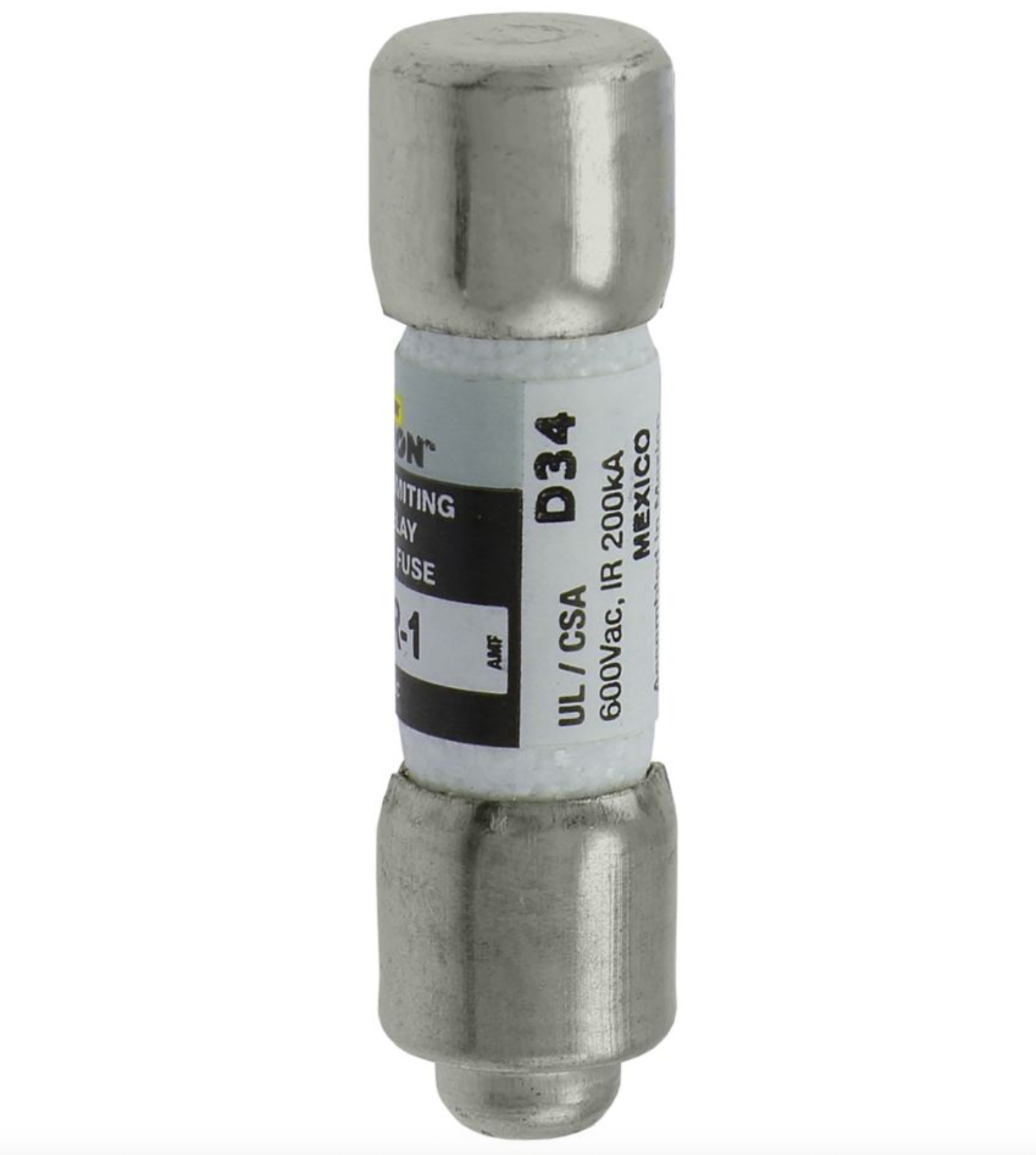

Eaton Bussmann FNQ-R-1 | 1A 600V Class CC Fuse

The Eaton Bussmann series FNQ-R-1 is a time-delay, current-limiting fuse designed to provide ultimate protection for control circuits, solenoids, and other inductive loads. Its dual-element design allows it to handle harmless inrush currents associated with transformers and coils without nuisance tripping, while still providing fast-acting short-circuit protection.

Features:

  • Time-Delay, Dual-Element: The robust dual-element construction provides a time delay to ride through temporary inrush currents while still offering fast response to damaging overload and short-circuit events.

  • Control Circuit Protection: Specifically designed to meet the needs of control transformers, solenoids, and other inductive loads that require time-delay protection.

  • Current-Limiting Action: Significantly limits the damaging let-through energy during a fault, providing superior protection for sensitive downstream components.

  • High Interrupting Rating: A 200kA AC interrupting rating provides a high degree of safety for use in systems with high potential fault currents.

  • Rejection Style Body: The Class CC rejection feature ensures that only the correct fuse type is installed, enhancing system safety and preventing the misapplication of other fuse classes.

Specifications:

  • Part Number: FNQ-R-1

  • Manufacturer: Eaton (Bussmann Series)

  • Fuse Class: CC

  • Amperage Rating: 1A

  • Voltage Rating: 600V AC

  • Interrupting Rating (AIC): 200kA at 600V AC

  • Characteristics: Time-Delay, Dual-Element, Current-Limiting

  • Style: Rejection Style Fuse

FUSE- FNQ-R-1

$17.83

Envío calculado a la salida.

  • 1000 En stock
Cantidad

FNQ-R-1 - Bussmann - 1.3 Amp Fuse

$17.83
