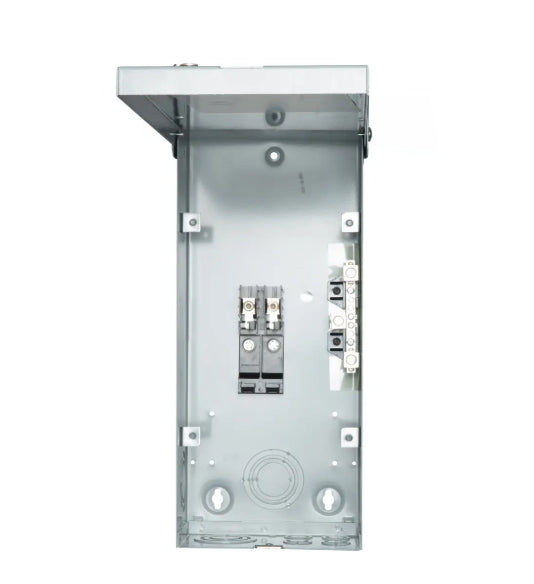

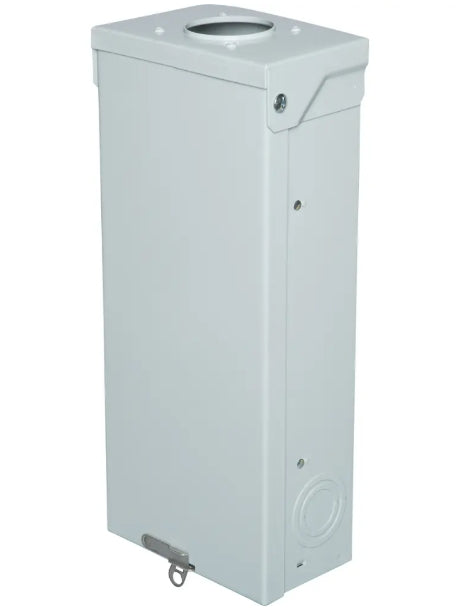

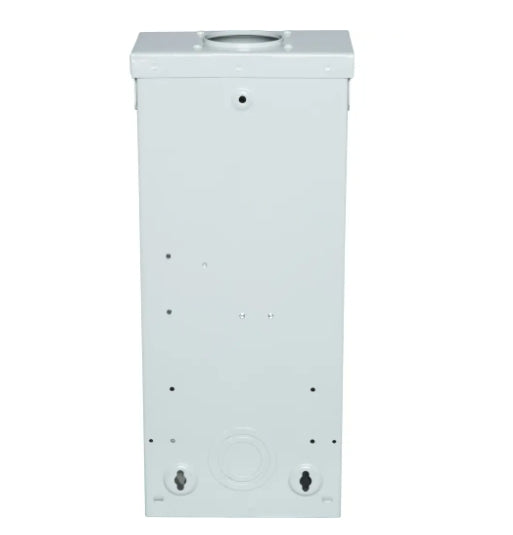

Siemens 125A 1 PH 2 / 4 Outdoor Load Center W0204MB1100/W0204ML1125CU

Siemens Outdoor Load Centers – 125A Main Lug & 100A Main Breaker Options

Models: W0204ML1125CU (125A Main Lug) | W0204MB1100 (100A Main Breaker)

Weatherproof Power Distribution for Residential/Commercial Use

These NEMA 3R-rated outdoor enclosures offer flexible configurations for service entrances or subpanels:
✔ 125A Main Lug (W0204ML1125CU) – High 100 kAIC fault protection
✔ 100A Main Breaker (W0204MB1100) – Built-in QP/QT-series breaker compatibility

Key Features (Both Models)

  • Outdoor Durability:

    • NEMA 3R enclosures (rain/sleet resistant)

    • Gray enamel finish (corrosion protection)

  • Wiring Flexibility:

    • Main Lug: Through-lug feed (4-2/0 AWG)

    • Main Breaker: 3-wire SN configuration

  • Compact Designs:

    • Surface/flush mount options

Model Comparison

Feature W0204ML1125CU W0204MB1100
Type Main Lug (125A) Main Breaker (100A)
Interrupt Rating 100 kAIC 22 kAIC
Breaker Comp. N/A QP/QT/QPF/QE/QN/QAF series
Dimensions 17.125"H × 7.375"W × 4.3125"D 13"L × 7.1"W × 4.8"H
Weight 11.04 lbs [Include if available]
Best For High-fault applications Standard residential services

Technical Specifications

Attribute Specification
Voltage 120/240V, 1-Phase
Bus Material Aluminum
Wire Size 4 AWG–2/0 (Main Lug)
Mounting Surface/Flush (MB) Surface (ML)
Enclosure NEMA 3R (Outdoor)

ENC-W0204MB1100

$133.40

Envío calculado a la salida.

  • 1000 En stock
Type:
Cantidad

Siemens 125A 1 PH 2 / 4 Outdoor Load Center W0204MB1100/W0204ML1125CU

$133.40
