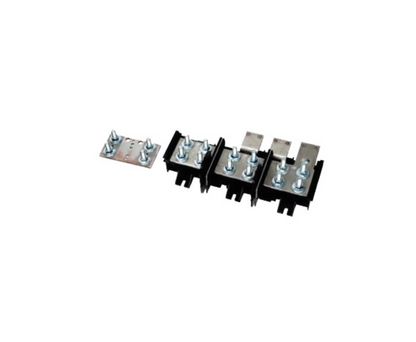

POWMOD LUG KT 3PH 5COND 600KCM HOLE

Core Specifications

Category Specification
Current Rating 1400-1600A (Continuous)
Configuration 5-Conductor (3Ph+N+G)
Insulation Class B (130°C)
Bus Material Tin-Plated Copper
Dimensions 4.75"W × 8.38"H × 23"L
Weight 10.4 lb (4.72 kg)

Regulatory Compliance

  • Standards: UL 67 • IEEE C37.23

  • Government:

    • ARRA Compliant

    • Buy American Act Compliant

  • Environmental: RoHS 3 (2015/863/EU)

Construction Features

✔ Precision-Formed Bus - 99.9% conductivity copper
✔ Modular Design - Stackable metering sections
✔ Safety:

  • 100% isolated neutral

  • Finger-safe design

Electrical Characteristics

  • Voltage: 600V AC max

  • Frequency: 50/60Hz

  • Impedance: <0.01Ω per 10ft

Installation Data

  • Torque Specs:

    • Bus joints: 35 lb-ft

    • Grounds: 25 lb-ft

  • Clearances:

    • 3" side-to-side

    • 6" vertical

MB-LK35600N2

$813.05

Envío calculado a la salida.

  • 1000 En stock
Cantidad

POWMOD LUG KT 3PH 5COND 600KCM HOLE

$813.05
