SQUARE D KA36200 3 POLE 600V 200 A

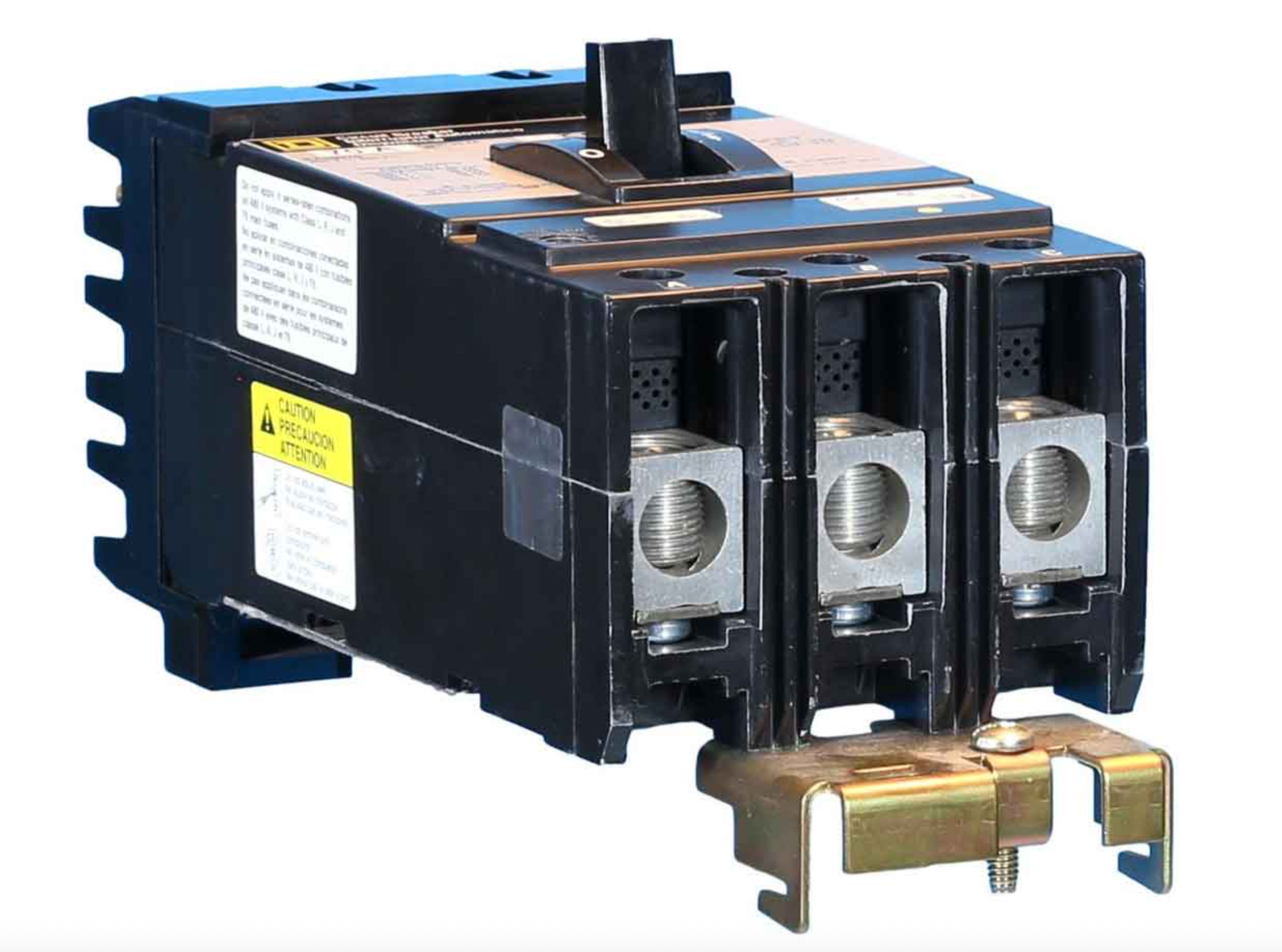

Square D KA36200 | 200A 3-Pole I-Line Circuit Breaker

The Square D KA36200 is a thermal-magnetic molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial applications. As part of the KA frame family, it features the unique I-Line plug-in design for quick and secure installation in Square D I-Line panelboards.

Features:

  • Thermal-Magnetic Protection: Utilizes a thermal-magnetic trip unit to provide proven protection against both overloads (long-time) and short circuits (instantaneous).

  • I-Line Plug-In Connection: Features the I-Line "ratcheting" plug-in design, allowing for fast, easy, and secure mounting in I-Line panelboards without the need for additional mounting hardware.

  • Durable KA Frame: The robust KA frame construction ensures reliable performance and a long service life in demanding environments.

  • Clear Identification: Clearly marked with specifications for easy identification and verification during installation and maintenance.

Specifications:

  • Manufacturer: Square D

  • Model Number (MPN): KA36200

  • Frame Type / Series: KA

  • Amperage Rating: 200A

  • Voltage Rating: 600V AC

  • Number of Poles: 3-Pole

  • Phase: 3-Phase

  • Interrupting Rating: 25kAIC at 480V AC

  • Connection Type: I-Line Style Plug-In

  • Protection: Thermal Magnetic

  • Trip Functions: Long-Time & Instantaneous (LI)

  • Operating Temperature: 40°C (104°F)



BR-KA36200

$398.95

Shipping calculated at checkout.

Quantity

SQUARE D KA36200 3 POLE 600V 200 A

$398.95
