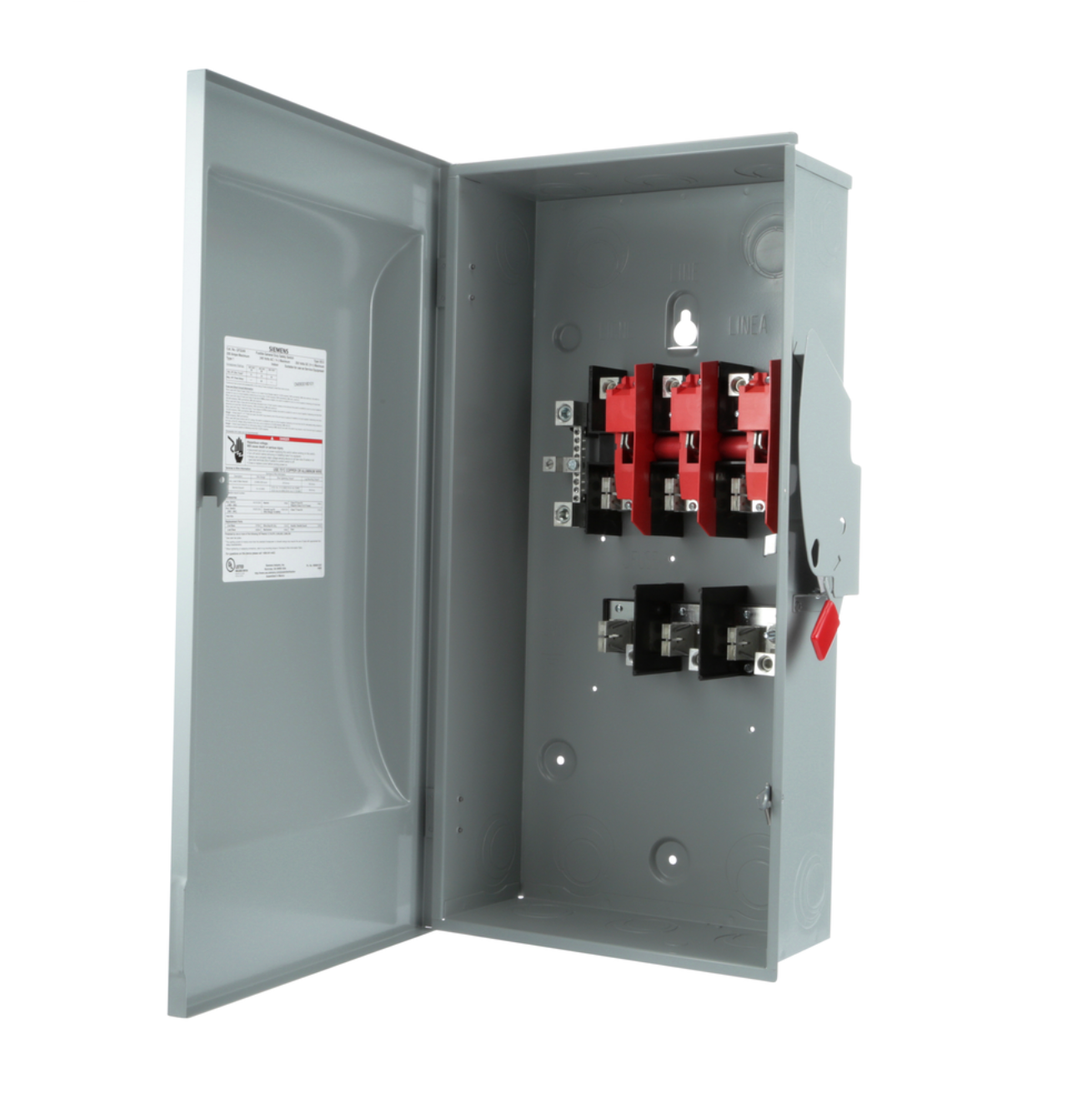

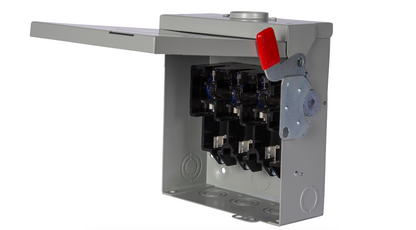

This robust, 3-pole, 4-wire fusible single-throw disconnect switch is designed for reliable performance as a service entrance or load disconnect. Constructed from durable steel with a NEMA 1 enclosure, it is suitable for indoor applications.

Key Features:

• Amperage: 200 Amps

• Voltage: 240 Volts

• Poles/Wires: 3 Pole, 4 Wire

• Actuator: Single Throw

• Fuse Type: Fusible

• Enclosure: NEMA 1

• Material: Steel

• Mounting: 2 or 3 Point Mounting Holes

• Connection: Mechanical Lugs (TC Connection)

• Operating Temperature: -20 to 120 degrees F (-29 to 49 degrees C)

• Frequency: 60 Hz

• Operating Cycles: 8000

• Standard: UL Listed
