QB Electrical

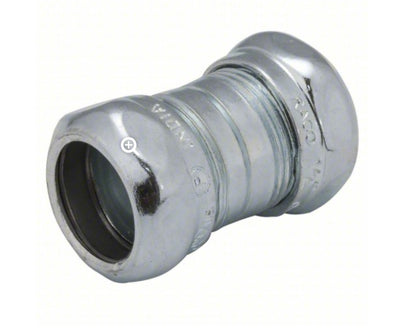

EMT Compression Type Coupling ECCP
Zinc-Plated Steel EMT Compression Connectors
*1/2" to 2" Trade Sizes | cULus Listed | Concrete-Tight*
Key Features
✔ Full Size Range – Available in 6 standard EMT sizes (½" to 2")
✔ Heavy-Duty Construction – Grade 8 steel with zinc plating
✔ Compression-Style – Superior grip vs. set screw designs
✔ Complete Kit – Includes integral clamp and locknut
Size Specifications
| Trade Size | Overall Length | Actual EMT OD | Locknut Included |
|---|---|---|---|
| ½" | 1-29/32" | 0.706" | Yes |
| ¾" | 2-3/32" | 0.922" | Yes |
| 1" | 2-3/8" | 1.163" | Yes |
| 1¼" | 2-11/16" | 1.540" | Yes |
| 1½" | 3" | 1.740" | Yes |
| 2" | 3-1/2" | 2.197" | Yes |
Technical Details
-
Material: Steel (zinc-plated)
-
Finish: Corrosion-resistant gray
-
Standards: cULus Listed
-
UNSPSC: 39121434
ECCP-050
- 1000 In stock
Quantity
QB Electrical
EMT Compression Type Coupling ECCPECCP-050
Zinc-Plated Steel EMT Compression Connectors
*1/2" to 2" Trade Sizes | cULus Listed | Concrete-Tight*
Key Features
✔ Full Size Range – Available in 6 standard EMT sizes (½" to 2")
✔ Heavy-Duty Construction – Grade 8 steel with zinc plating
✔ Compression-Style – Superior grip vs. set screw designs
✔ Complete Kit – Includes integral clamp and locknut
Size Specifications
| Trade Size | Overall Length | Actual EMT OD | Locknut Included |
|---|---|---|---|
| ½" | 1-29/32" | 0.706" | Yes |
| ¾" | 2-3/32" | 0.922" | Yes |
| 1" | 2-3/8" | 1.163" | Yes |
| 1¼" | 2-11/16" | 1.540" | Yes |
| 1½" | 3" | 1.740" | Yes |
| 2" | 3-1/2" | 2.197" | Yes |
Technical Details
-
Material: Steel (zinc-plated)
-
Finish: Corrosion-resistant gray
-
Standards: cULus Listed
-
UNSPSC: 39121434
