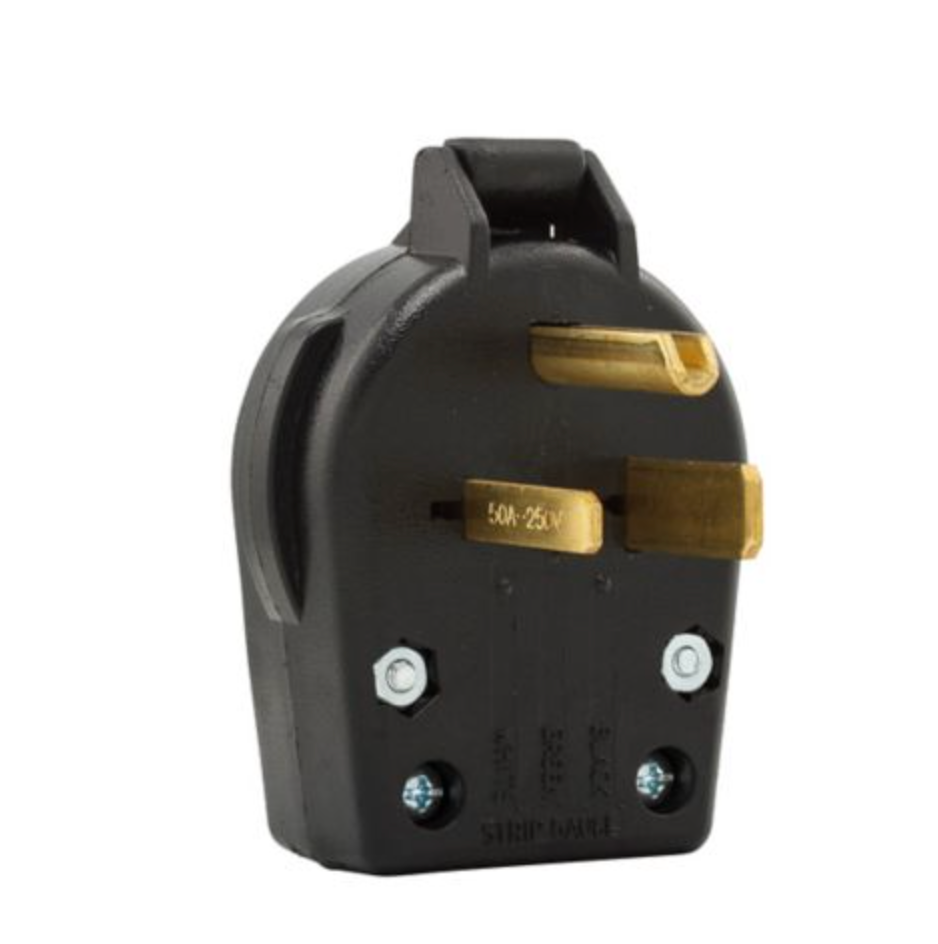

Eaton 30/50A Universal Angle Plug 2P/3W..NEMA/EEMAC 6-30P/50P

30A/50A | 250V | NEMA 6-30P/6-50P | 3P3W | Industrial Grade

Product Identification

  • Series: Arrow Hart® Commercial/Industrial

  • Model: S42-SP

  • UPC: 032664517846

  • Certifications: UL Listed

  • Packaging: Retail Box

Technical Specifications

Category Specification
Electrical Rating 30A or 50A, 250V AC
Configurations NEMA 6-30P & 6-50P
Wiring 3-Wire (2H-1G)
Terminals Screw-Type (Back-Wired)
Wire Range #10-6 AWG Copper
Torque Spec 20 lbf-in (2.3 N·m)
Cord Diameter 1.10" Max

Physical Properties

  • Dimensions: 1.38"L × 3.37"H × 2.87"W

  • Weight: 0.455 lb

  • Material: Heavy-Duty PVC

  • Color: Black

  • Design: 30° Angled Blade Configuration

Key Features

✔ Dual Configuration - Compatible with both 6-30R & 6-50R receptacles
✔ Strain Relief - Angled design reduces cord fatigue by 40%
✔ Industrial Build - Thick-wall PVC housing (UL94 V-0)
✔ High-Current - Brass contacts rated for 50A continuous

PLUG-ETN- S42

$16.04
