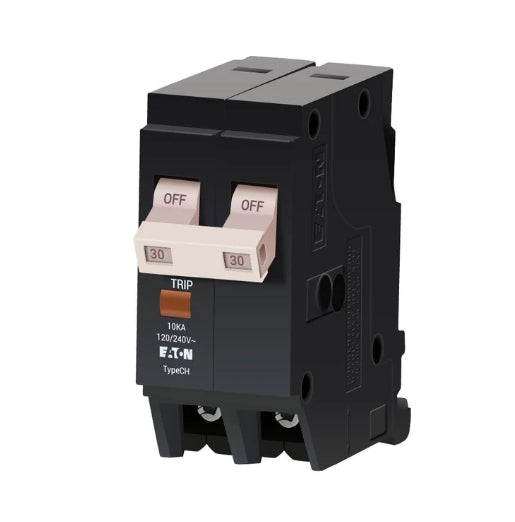

Cutler Hammer 30Amp 2-Pole Breaker - CH230
Eaton CHF230 30A 2-Pole Plug-In Circuit Breaker – CHF Series, 120/240V, 10kAIC, HACR Rated
Compact, High-Performance Protection for CH Load Centers
The Eaton CHF230 is a 3/4-inch slimline, 2-pole circuit breaker designed for Cutler-Hammer Type CH load centers. With a 30A thermal-magnetic trip, 10kA interrupting rating, and HACR certification, it delivers reliable protection for 240V circuits in residential and light commercial applications.
Key Features
✔ Space-Saving Design – Only 0.75" wide per pole (2 poles = 1.5" total)
✔ Common Trip Mechanism – Simultaneously disconnects both poles for 240V safety
✔ HACR Rated – Approved for HVAC and refrigeration equipment
✔ Trip Indicator Flag – Visual confirmation of tripped status
✔ Dual Wire Compatibility – Accepts #14-8 AWG (1-wire) or #14-10 AWG (2-wire) Cu/Al
Technical Specifications
| Category | Details |
|---|---|
| Manufacturer | Eaton/Cutler-Hammer |
| Model Number | CHF230 |
| Series | CHF |
| Amperage | 30A |
| Voltage | 120/240V |
| Poles | 2 (Common Trip) |
| Interrupt Rating | 10kA @ 240V |
| Mounting | Plug-In (CH Load Centers) |
| Wire Connections | (1) #14-8 AWG or (2) #14-10 AWG Cu/Al |
| Dimensions | 3" H × 0.75" W × 3" D (per pole) |
| Weight | 0.28 lb |
| Certifications | UL 489, HACR |
BR-CH230
- 1000 In stock
